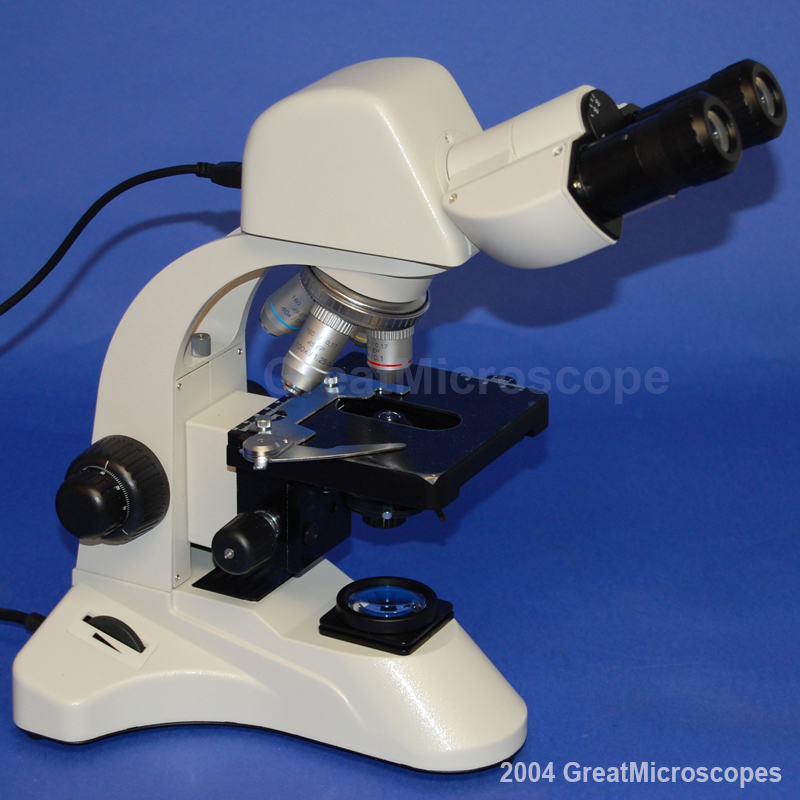

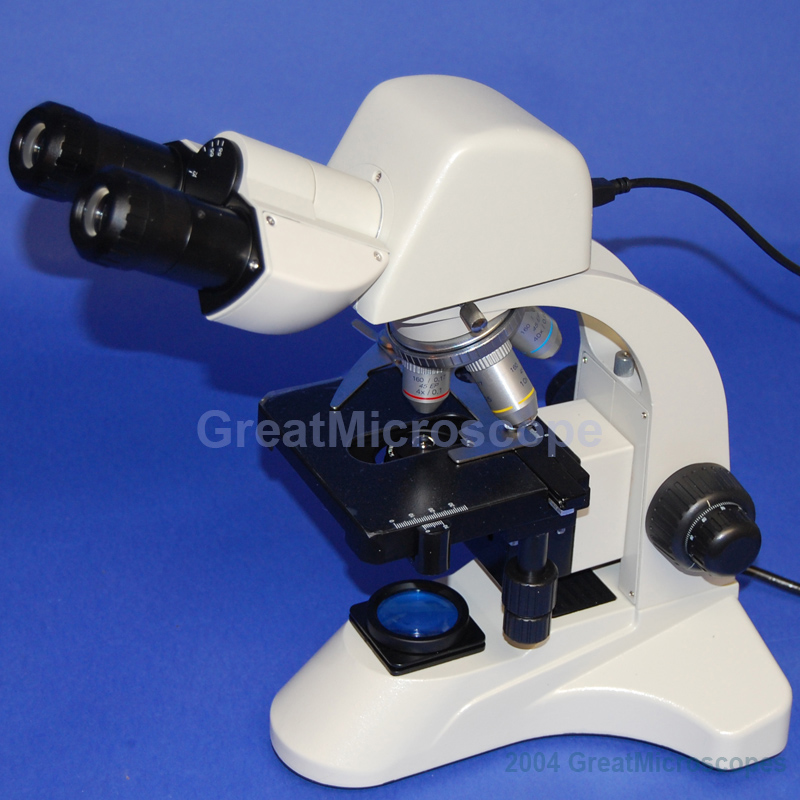

Digital Microscope 40x – 1600x Magnification Binocular Compound Built in 5 Mega Pixel USB camera

Microscope Product Overview:

Biological Digital Microscope, equipped with high quality optical system, provides excellent optical performance. Because of the streamline figure and pastel color, it has more beautiful appearance. It achieves the notion of ergonomics design, so it can provide the more comfortable operation and operational room. It can be used in the field of the biology, medicine, industry, agriculture, also as ideal tools in hospital, teaching and academy field.
Achromatic Optical System
Digital Binocular Head genel-style, Inclined 30 degree Interpupillary distance:55-75mm CMOS Camera.
Both Eyepiece Tube Diopter Adjustable
Wide Field Eyepiece WF10X/F.N.22mm
High Contrast Chromatic-free Achromatic Objectives
Large Size Mechanical Stage 216×150 mm , Graphite Surface, Moving
Range75mmx55mm
External Illumination,1W/LED

Product Description

Total Magnification	40x-16000X
Head	Digital viewing head, gnel-syle binocular head Inclined 30 degree.Interpapillary distance: 55-75mm 5 Mega Pixel Camera Intergrated
Eyepiece	Wide field eyepiece : F10x/18mm – diopter adjustable
Eyepiece	Wide field eyepiece : F16x/15mm – diopter adjustable

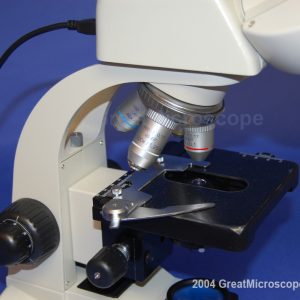

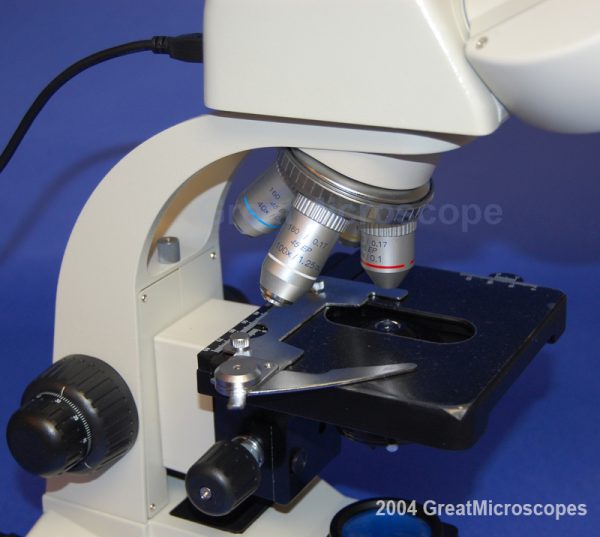

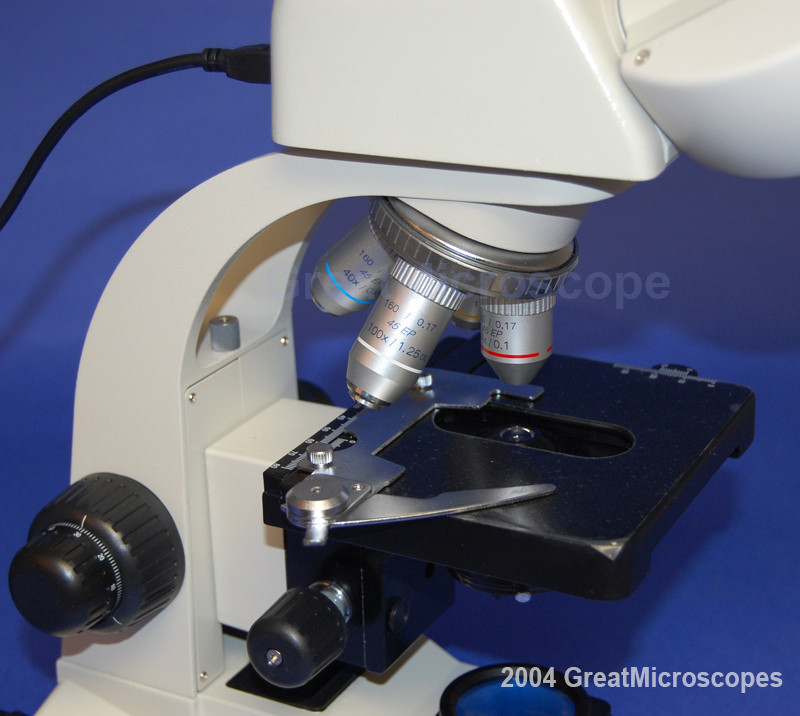

Objective	Achromatic Anti-molds-free 4X,10X,40X,100
Condenser	Abbe Condenser NA1.25
Stand Focusing System	Coaxial Coarse and Fine AdjustmentSystem: 22mm, Minimal sliding stage Graduation: 0.004mm
Condenser	Abbe type, N.A=1.25 With Ires Diaphragm and hand wheel stand
Lamp House	LED 1W, brightness adjustable

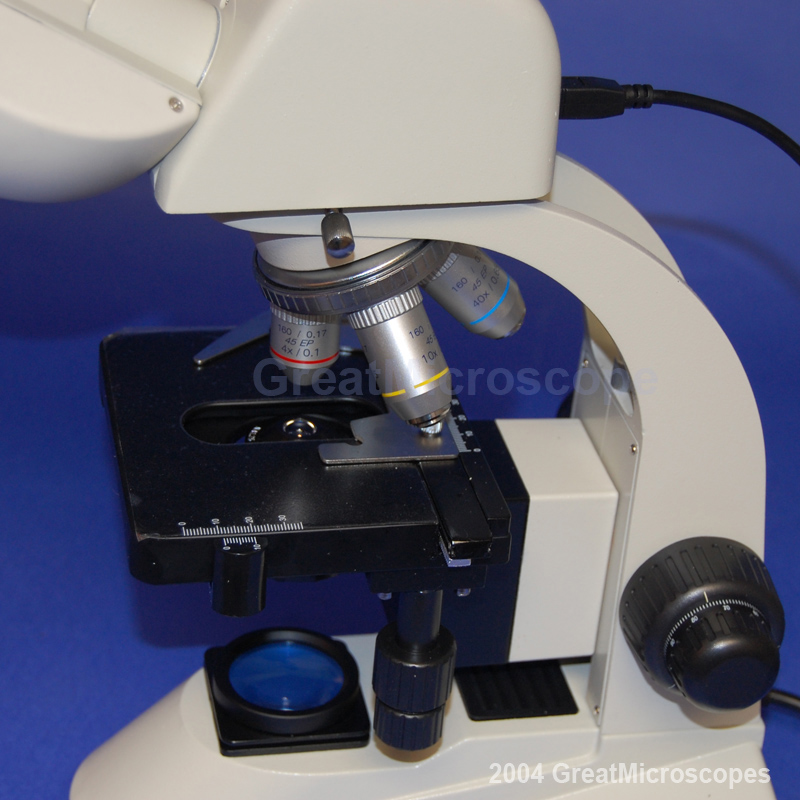

Working Stage	Large Size Double Layer Mechanical Stage 140x132mm , Moving Rang 50mmx30mmx

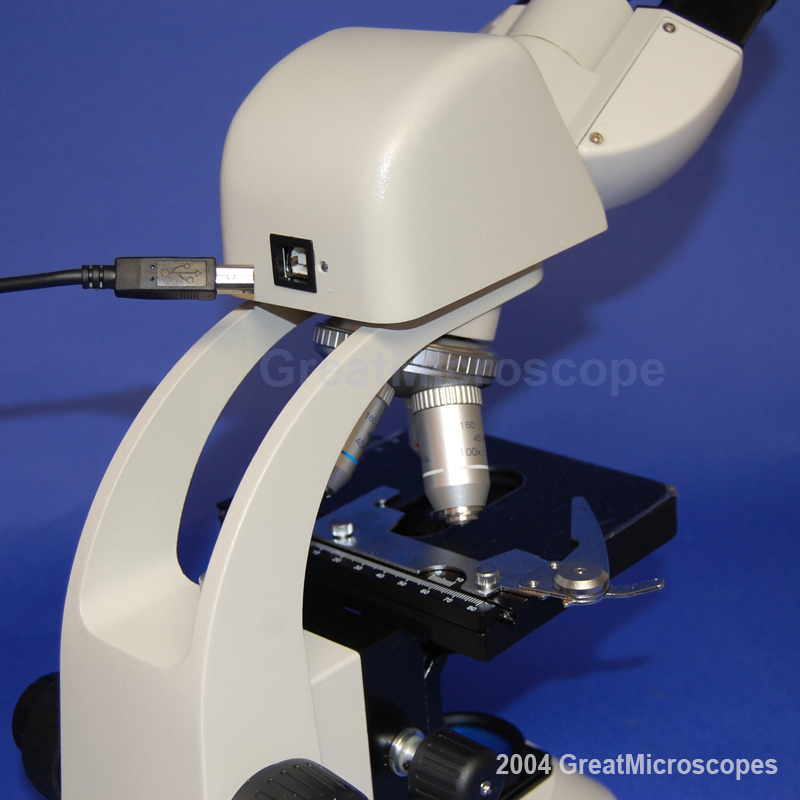

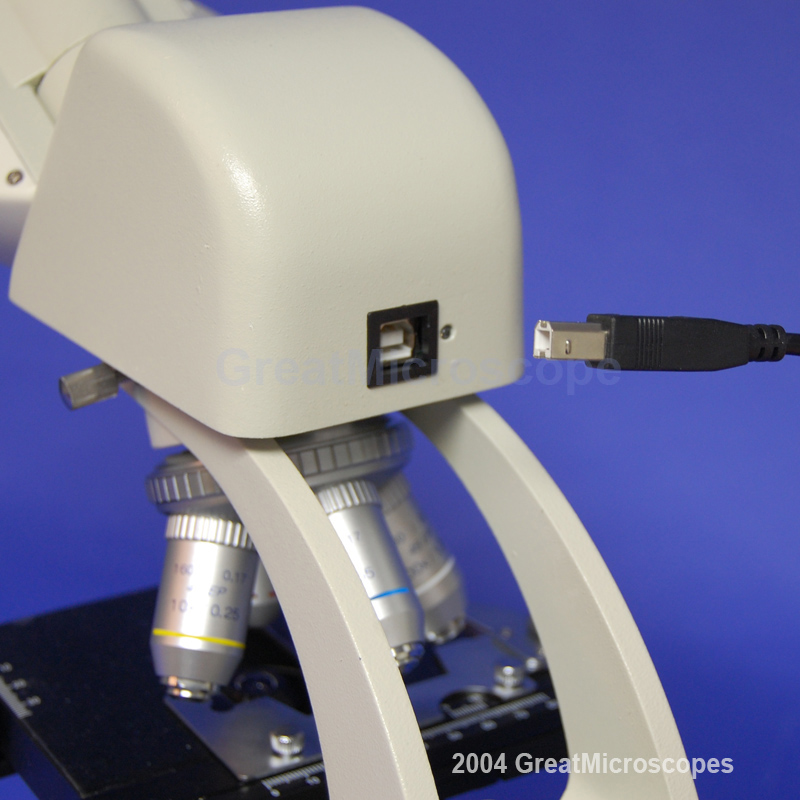

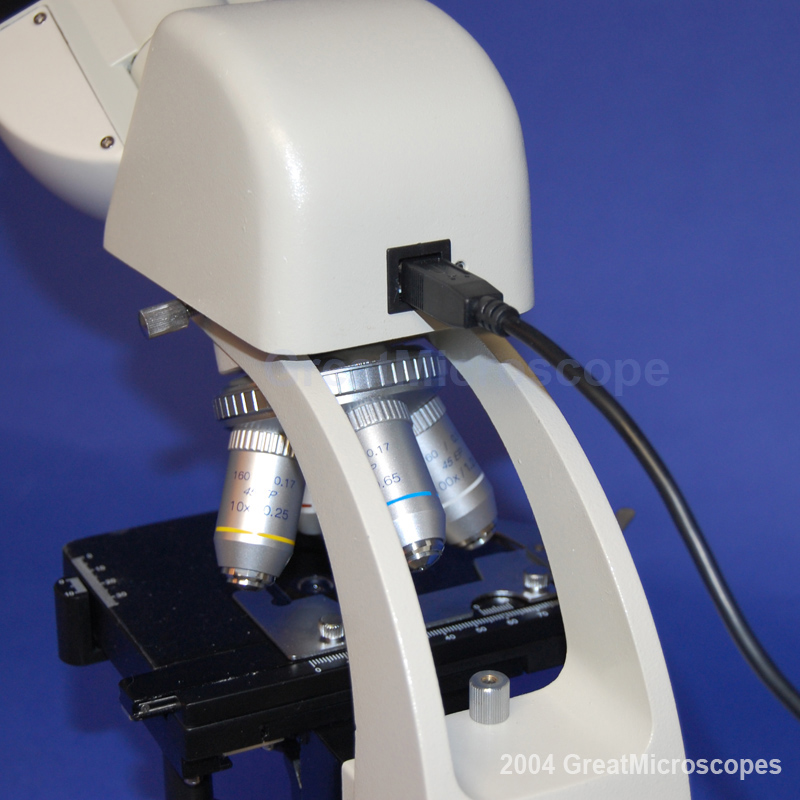

Camera CMOS	5 Mega Pixels, USB Port.Micro Image Processing and Analyzing Software

Included Items

Additional Information

1 Year Manufacturer’s Warranty

The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
If your system needs repair, simply let us know and we will see that it is back in service ASAP.
