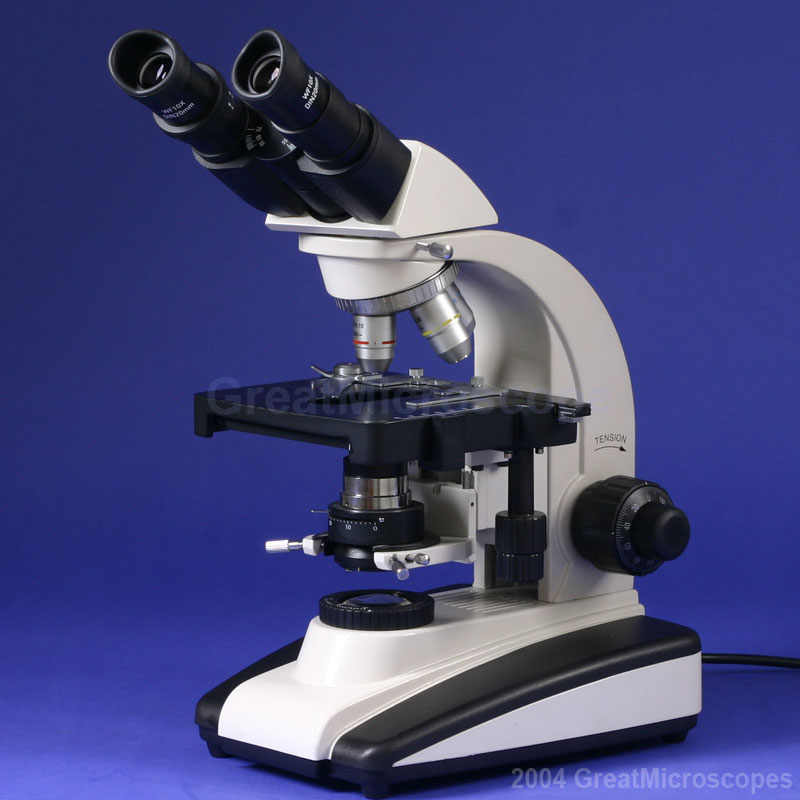

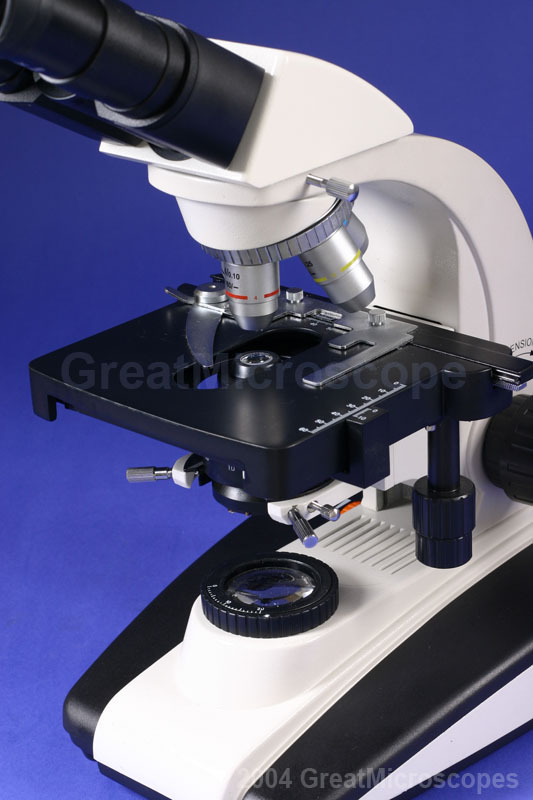

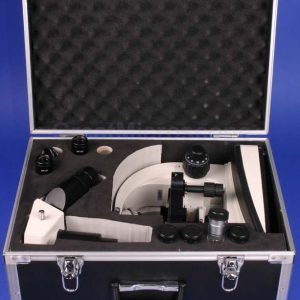

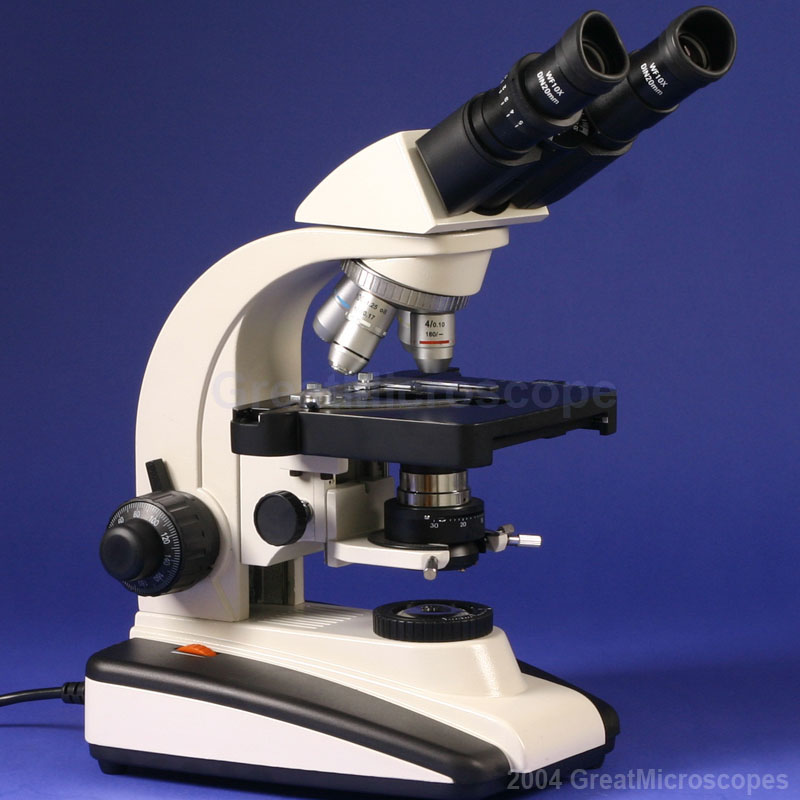

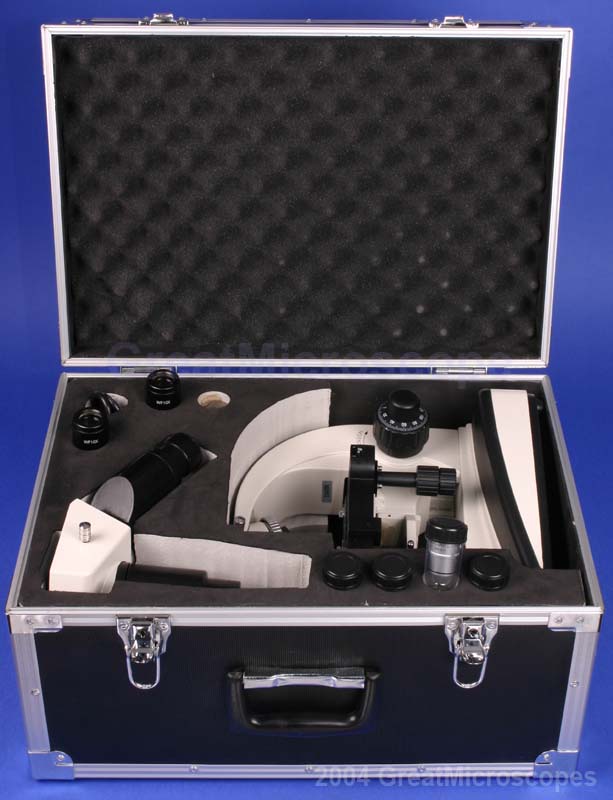

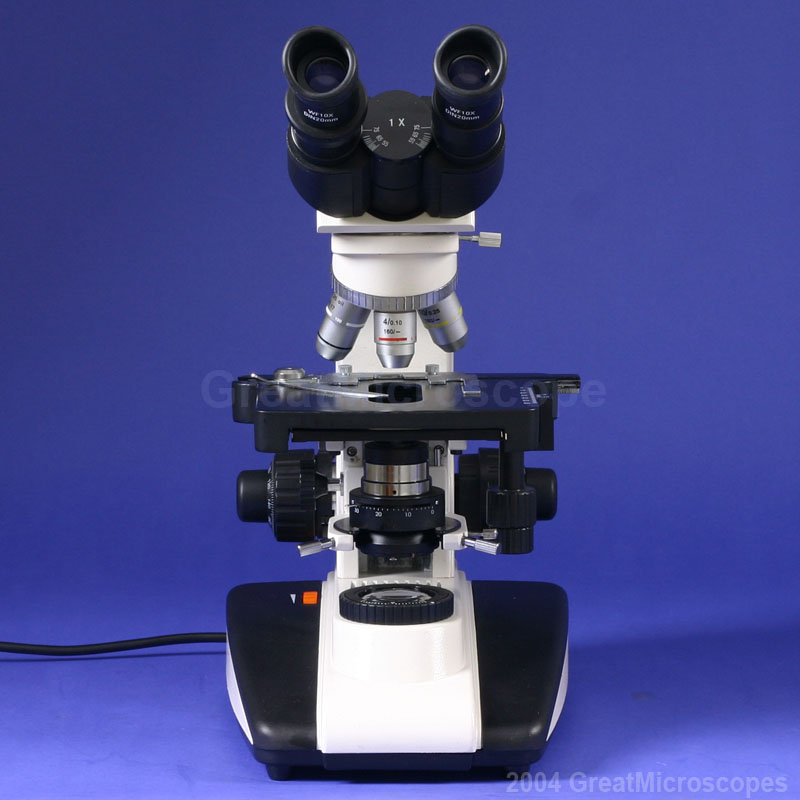

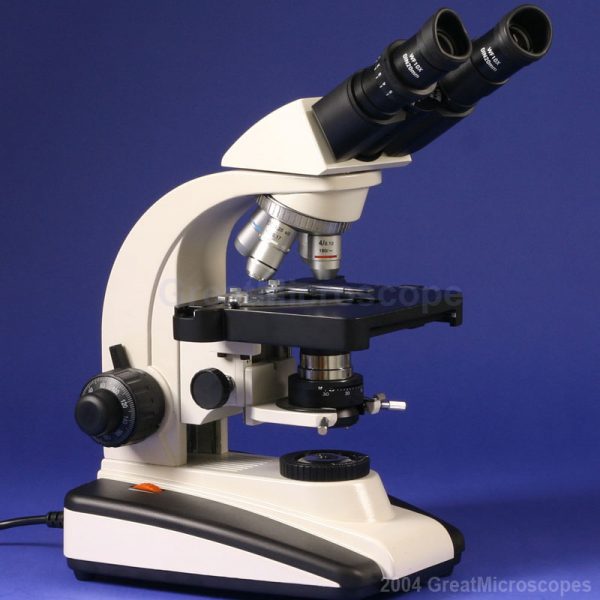

40X – 1600X MAGNIFICATION BINOCULAR BIOLOGICAL COMPOUND LIGHT MICROSCOPE LED Light Illumination CARRYING-TRAVEL CASE

Product Overview
•Excellent Quality Professional Biological Binocular Microscope!
•Full Size Base-Frame-Stage! Much Larger than Others.
•Lowest Possible Price!
•Sold by Others for Much More! Buy it Here and Save!
•Suitable for Clinics, Universities, Veterinarians, Students, Teachers, Etc.!
•View High Quality Clear Images Through the Eyepieces!

Microscope Product Features

Special Features
•Features 30mm eyepiece ocular tubes! Most compound microscopes are 23mm. The larger size allows for less eye strain, much easier viewing, and a larger and better quality image! After looking into these awesome eyepieces, you would never want a smaller 23mm ocular! Before buying a different scope, ask if it has the cheap 23mm oculars!

Eyepieces and Magnification
•Eight Magnifications: 40x, 64x, 100x, 160x, 400x, 640x, 1000x, and 1600x.
•Two Eyepiece Sets Included: Wide Field 10x and 16x. Larger 30mm diameter ocular size.
•Four DIN Plan Objectives: 4x, 10x, 40x, 100x (Oil Immersion).
•Spring Loaded 40x and 100x Objectives to Protect Slides.
•Reverse Facing Quadruple Nosepiece! A Better Design that allows Easier Access to the Slides since Objectives are Pointed Out of the Way!

Illumination
•3W LED, light intensity adjustable Transmitted Base Illumination.
•Koehler Illumination System with Focusable Field Diaphragm on Base to allow for Better Control and more Efficient Use of Light Source. This gives Improved Image Quality!
•Koehler is Important for Regular Brightfield Work and Essential for Phase Contrast and Darkfield.
•Few Scopes have the More Expensive Koehler Illumination System. If you see a Cheaper Scope, ask if it has Koehler.

Microscope Head Details
•30 Degree Inclined Binocular Head (Easier to View than 45 Deg.) Rotatable 360 Degrees.
•Adjusts to the Distance Between your Eyes: 55 to 75mm InterPupillary Distance.
•Diopter Adjustment to Correct for Your Specific Vision Needs.

Condenser – Iris – Filters

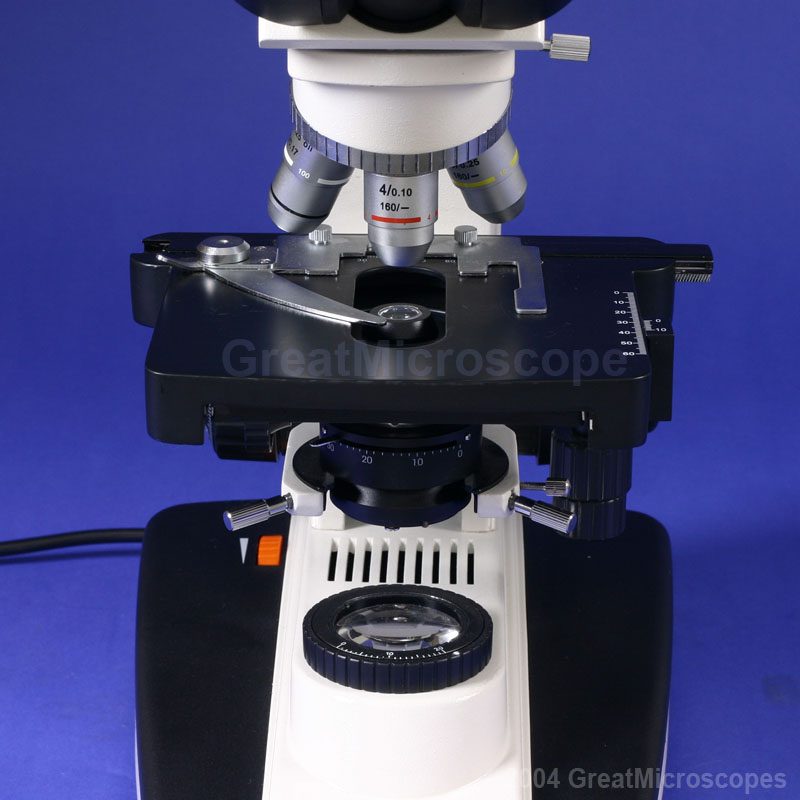

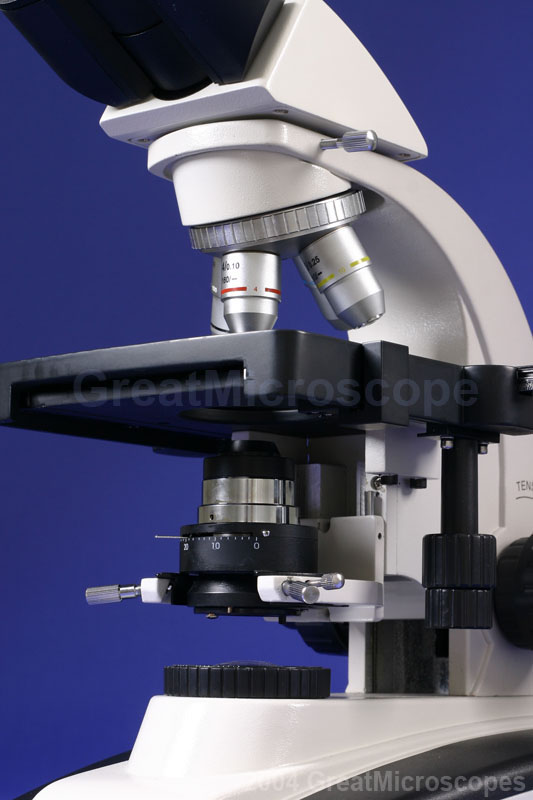

•1.25 N.A. Abbe Substage Condenser, Condenser Movement Knob, Iris Diaphragm and Swing-Out Filter Holder.
•Condenser Alignment Screws.
•Rack and Pinion Steel Gears for Easy and Better Condenser Movement.
•Three Filters Included: Blue, Green, Yellow.

Stage Specifications

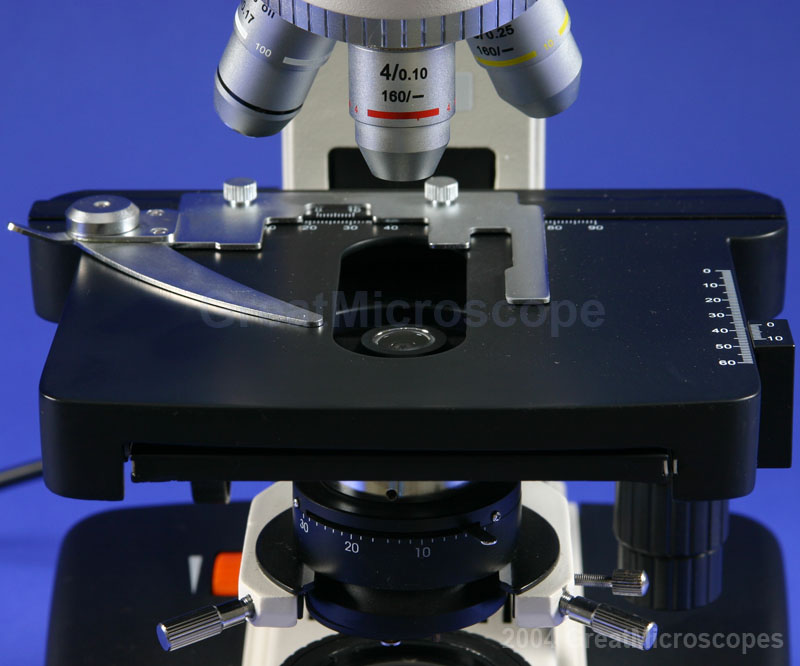

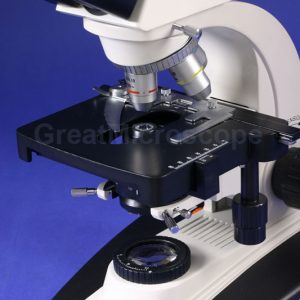

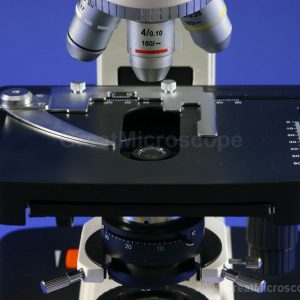

•Large Graduated Mechanical Movable (up/down and longitudinal Y-direction) Stage: 153 x 145mm.
•The Stage Movement in the Longitudinal Y-Direction is a Great Option Found Only on More Expensive Models!
•Low Position Coaxial X-Y Slide/Stage Movement Knobs – Range of Movement: 80mm (X-Direction – Slide Movement) x 52mm (Y-Direction – Stage Movement).

Focusing
•Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
•Coarse Adjustment Travel Range: 20mm. (Stage Movement Distance Up/Down).
•Fine Adjustment Division: 0.002mm.
•Adjustable Lock Ring Stop to Limit Coarse Range to Protect Slides.
•Tension Adjustable Coarse Focusing.

Frame – Base – Size – Weight
•Total Overall Height of Microscope: 495mm.
•Instrument Weight: 18 lbs.

Included Items
•Includes instructions, dust cover, bottle of immersion oil, spare 30W halogen bulb and fuse.
•Rubber cupping eyeguards for blocking stray light.

Other Specifications
•Manufactured under ISO: 9001 Standards.
•220V availability.
•High Quality Solid Construction!
•Precision Made Glass Optics!
•Brand New, Never Used!

Manufacturer’s Warranty
•Warranty is 1 years on all microscope equipment.
•The microscope warranty covers problems arising from normal usage.
•We will repair or replace your defective microscopy equipment as needed during the warranty period.
