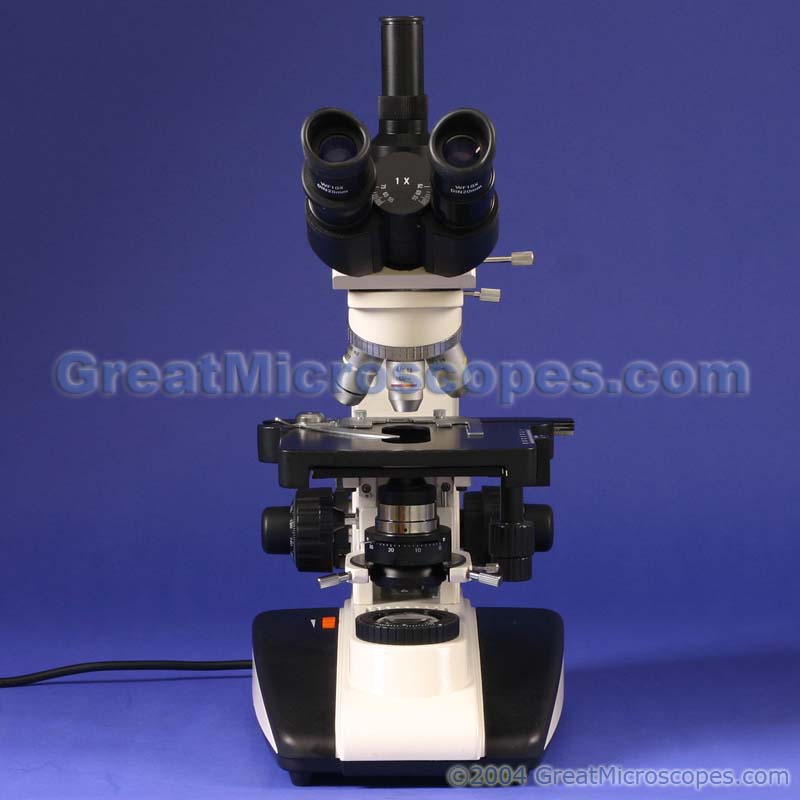

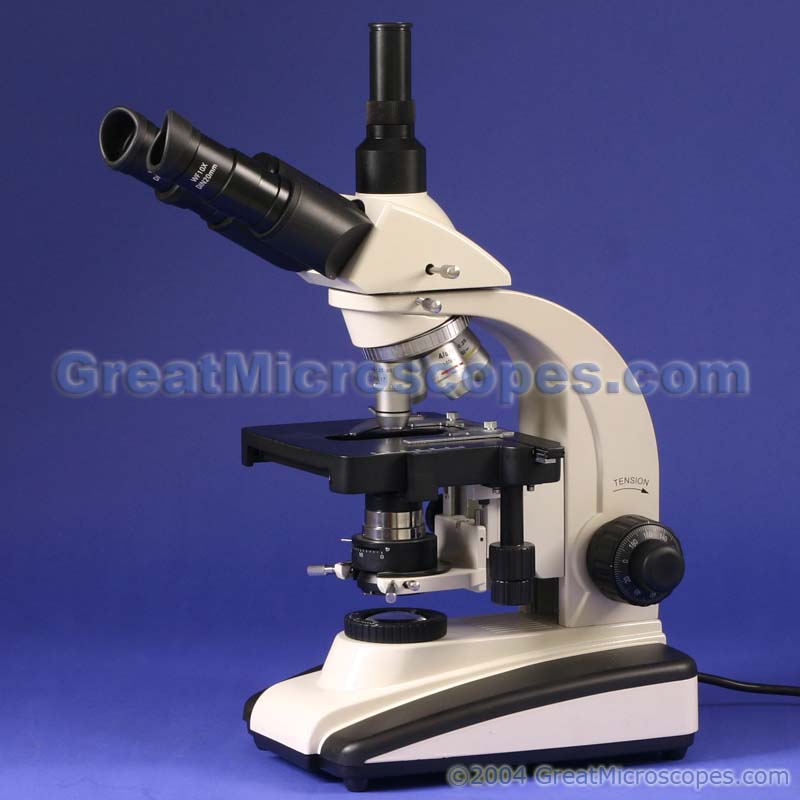

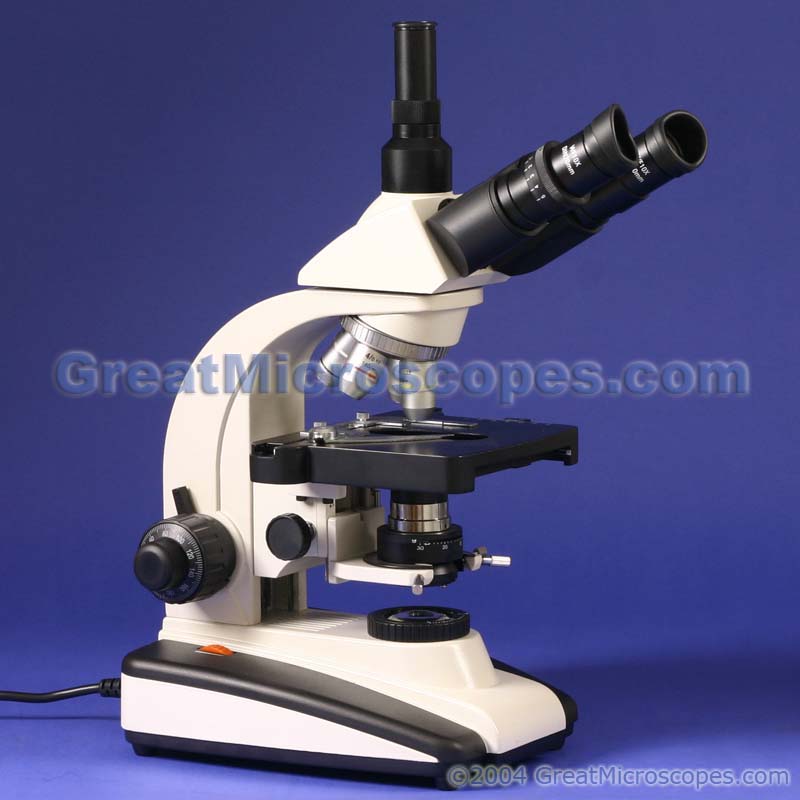

POWERED LED -40X – 1600X MAGNIFICATION TRINOCULAR COMPOUND MICROSCOPE W/ USB DIGITAL CAMERA

Product Overview

• High Quality Professional Compound Trinocular Microscope!
• Great for Doctors, Veterinarians, Breeders, Medical Students, Schools, Scientists, Research Labs.
• Compare to Similar Units costing $2000+ with name brands!
• Excellent Bright and Clear Images through High Quality Optics.

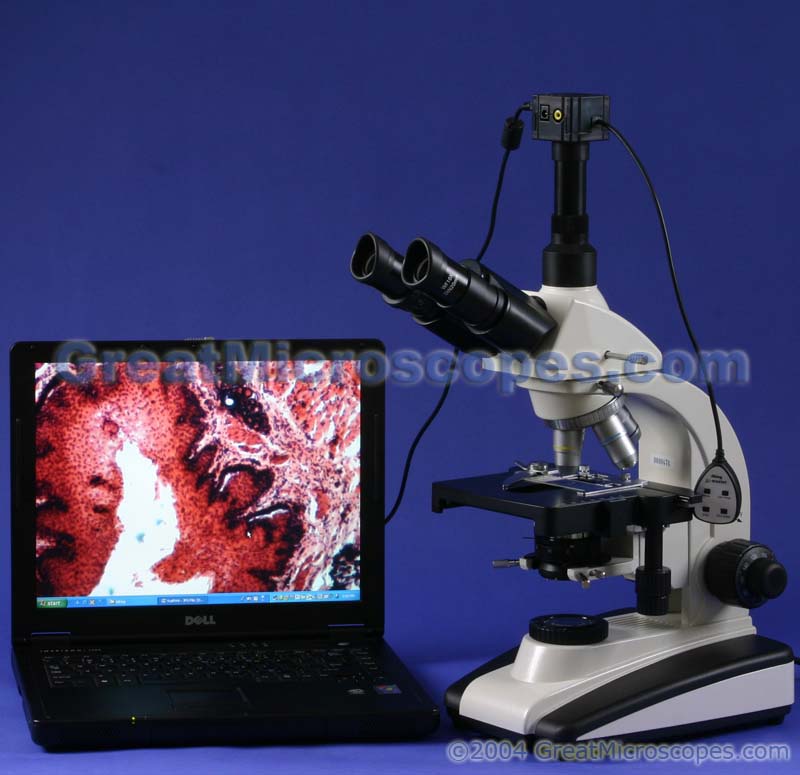

Trinocular Photography Port

• Photograph Your Own Specimens!
• Have Your Own Complete Digital Video Microscopy System!
• Capture Images With Your Computer!
• Videotape What You See Under the Microscope!
• Versatility – Included Trinocular Port Greatly Expands the Usefulness adding Photographic/Video Capability!
• Other (not included) accessories may be required for connecting digital/film cameras, CCD cameras and Video cameras. Call or Email us your specific requirements.

Special Features

• Unique Ability to have Image in Both Oculars and Photo Port Simultaneously. This is Perfect for Training as the Binocular Eyepieces can be viewed by the Instructor, and Everybody Else can Watch the Viewing Screen. Most Trinocular Scopes lose light in one ocular when light is diverted to the photo port. This scope has the ability for 100% of light in both oculars, or divert light and get 20% light in oculars and 80% in trinocular.

Eyepieces and Magnification

• Eight Magnifications: 40x, 64x, 100x, 160x, 400x, 640x, 1000x, and 1600x.
• Two Eyepiece Sets Included: Wide Field 10x and 16x.
• Four DIN Objectives: 4x, 10x, 40x, 100x (Oil Immersion).
• Spring Loaded 40x and 100x Objectives to Protect Slides.
• Reverse Facing Quadruple Nosepiece! A Better Design that allows Easier Access to the Slides since Objectives are Pointed Out of the Way!

Microscope Head Details

• 30 Degree Inclined Trinocular Head (Easier to View than 45 Deg.) Rotatable 360 Degrees.
• Adjusts to the Distance Between your Eyes: 55 to 75mm InterPupillary Distance.
• Diopter Adjustment to Correct for Your Specific Vision Needs.

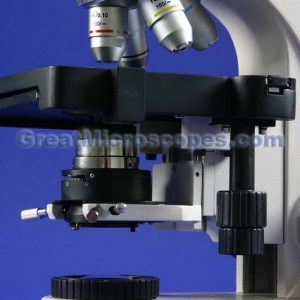

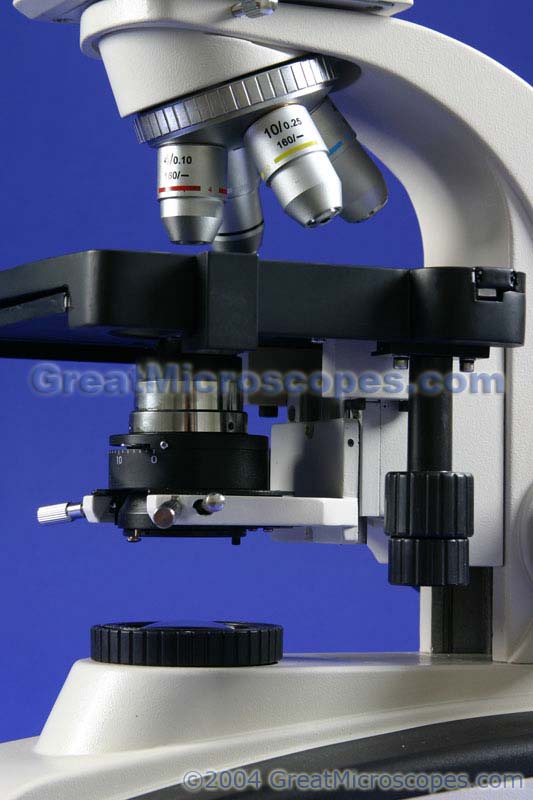

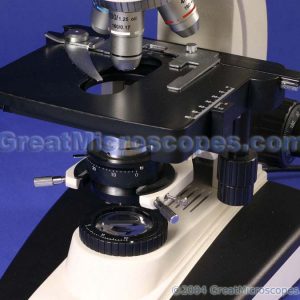

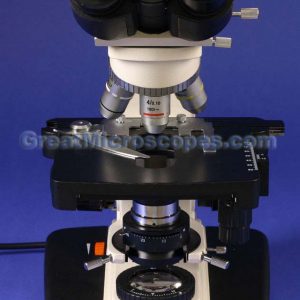

Condenser – Iris – Filters

• 1.25 N.A. Abbe Substage Condenser, Condenser Movement Knob, Iris Diaphragm and Swing-Out Filter Holder.
• Condenser Alignment Screws.
• Rack and Pinion Steel Gears for Easy and Better Condenser Movement.
• Three Filters Included: Blue, Green, Yellow.

Illumination

• High Wattage Variable Intensity 30W Tungsten Halogen Transmitted Base Illumination.
• If you find a cheaper scope, ask if it is made to accomodate the higher wattage 30W bulbs that provide a Brighter Image. It is Important for Regular Brightfield work and Essential for Phase Contrast and Darkfield.
• Koehler Illumination System with Focusable Field Diaphragm on Base to allow for Better Control and more Efficient Use of Light Source. This gives Improved Image Quality!
• Koehler is Important for Regular Brightfield Work and Essential for Phase Contrast and Darkfield.
• Few Scopes have the More Expensive Koehler Illumination System. If you see a Cheaper Scope, ask if it has Koehler.

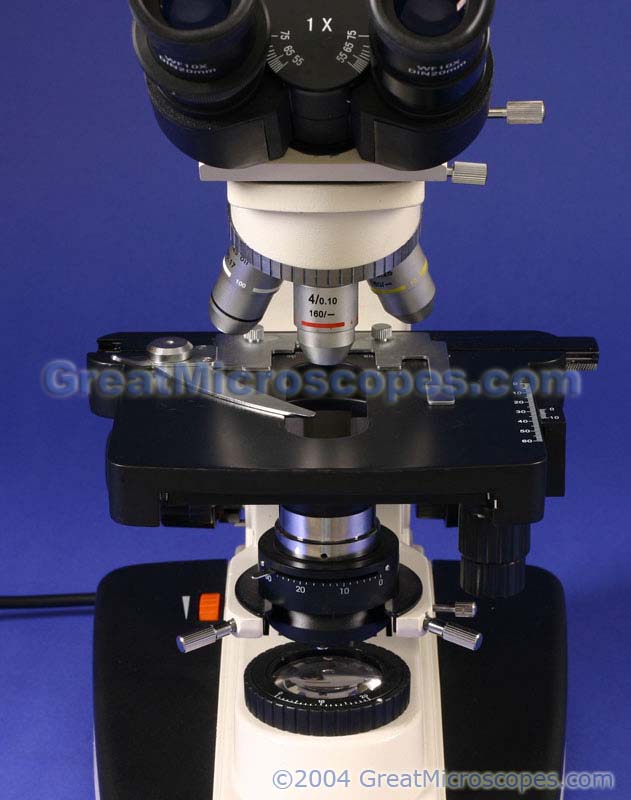

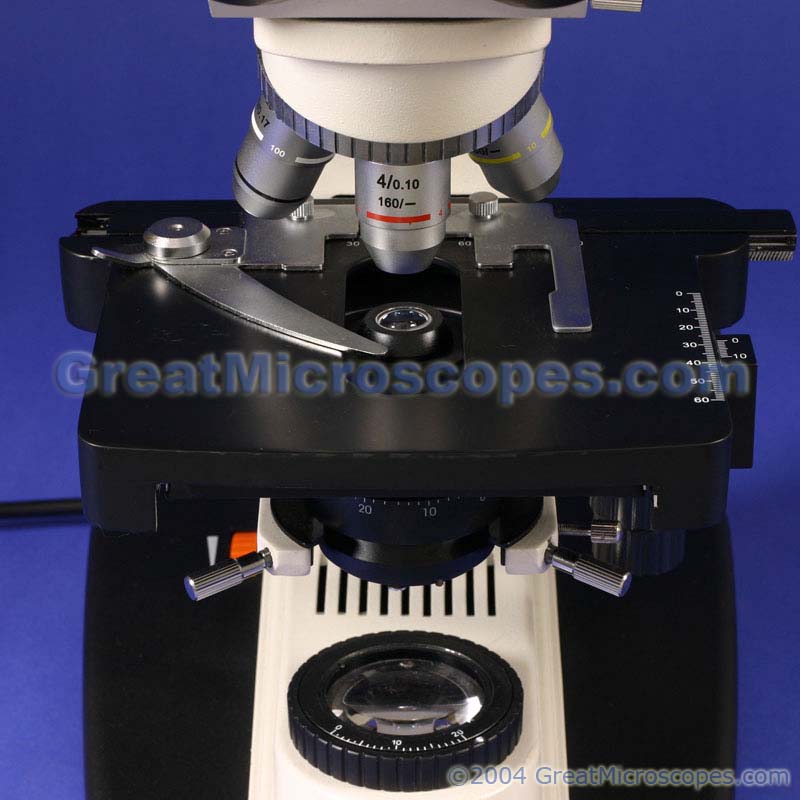

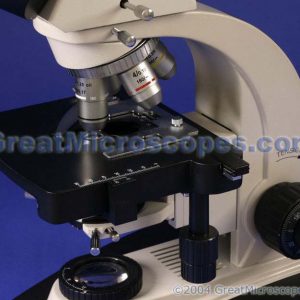

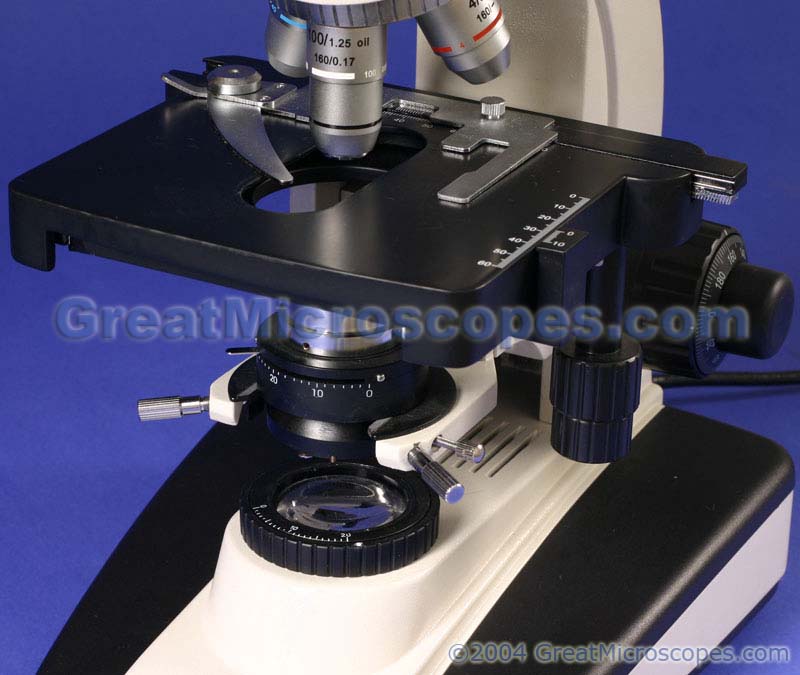

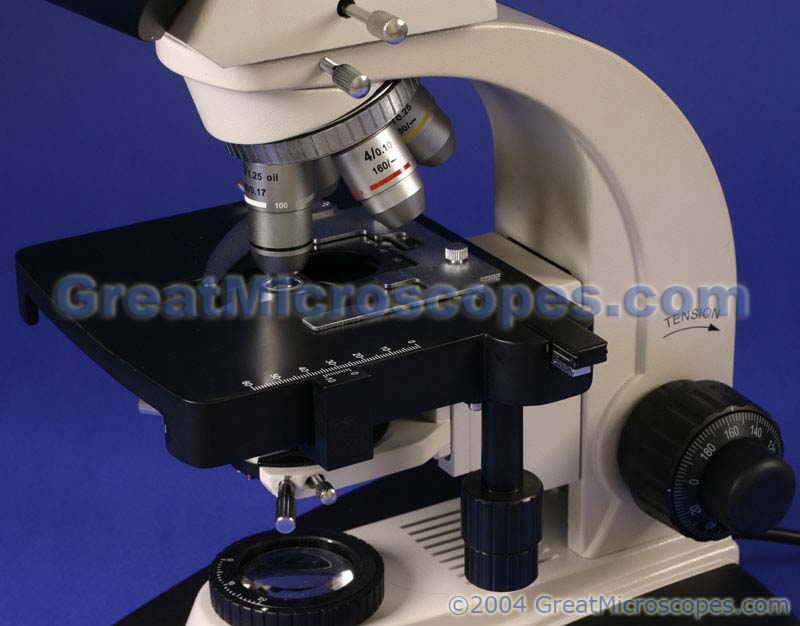

Stage Specifications

• Large Graduated Mechanical Movable (up/down and longitudinal Y-direction) Stage: 153 x 145mm.
• The Stage Movement in the Longitudinal Y-Direction is a Great Option Found Only on More Expensive Models!
• Low Position Coaxial X-Y Slide/Stage Movement Knobs – Range of Movement: 80mm (X-Direction – Slide Movement) x 52mm (Y-Direction – Stage Movement).

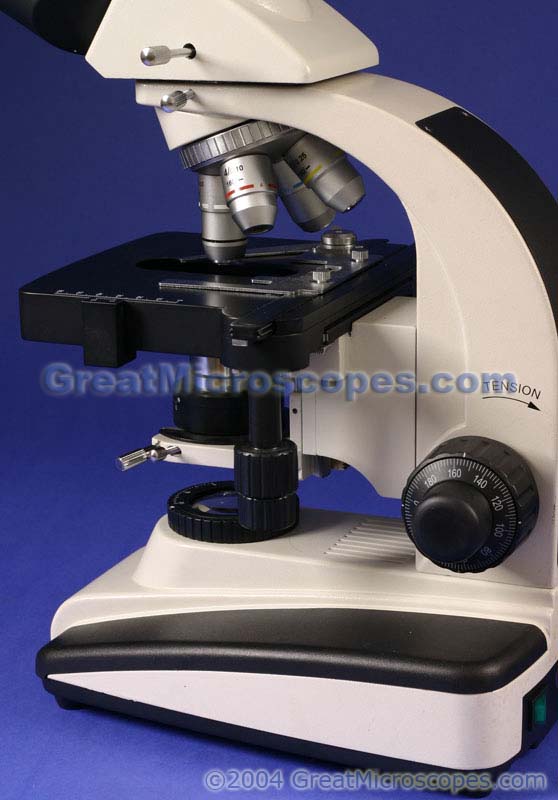

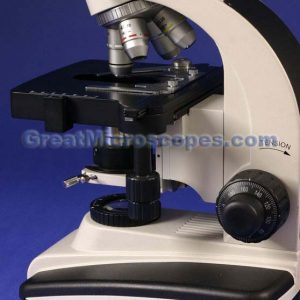

Focusing

• Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
• Coarse Adjustment Travel Range: 20mm. (Stage Movement Distance Up/Down).
• Fine Adjustment Division: 0.002mm.
• Adjustable Lock Ring Stop to Limit Coarse Range to Protect Slides.
• Tension Adjustable Coarse Focusing.

Frame – Base – Size – Weight

• Total Overall Height of Microscope: 495mm.
• Instrument Weight: 18 lbs.

Included Items

• Includes: Instructions, Dust Cover, Bottle of Immersion Oil, Extra 30W Bulb and Fuse.

Additional Information

• Manufactured under ISO: 9001 Standards.
• Protective Molded Styrofoam Container.
• Precision Ground Glass Lens.
• Quality Construction, Metal Frame.
• 110 VAC (email about 220V availability).
• 100% Brand New!

1 Year Manufacturer’s Warranty

• The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
• If your system needs repair, simply let us know and we will see that it is back in service ASAP.
