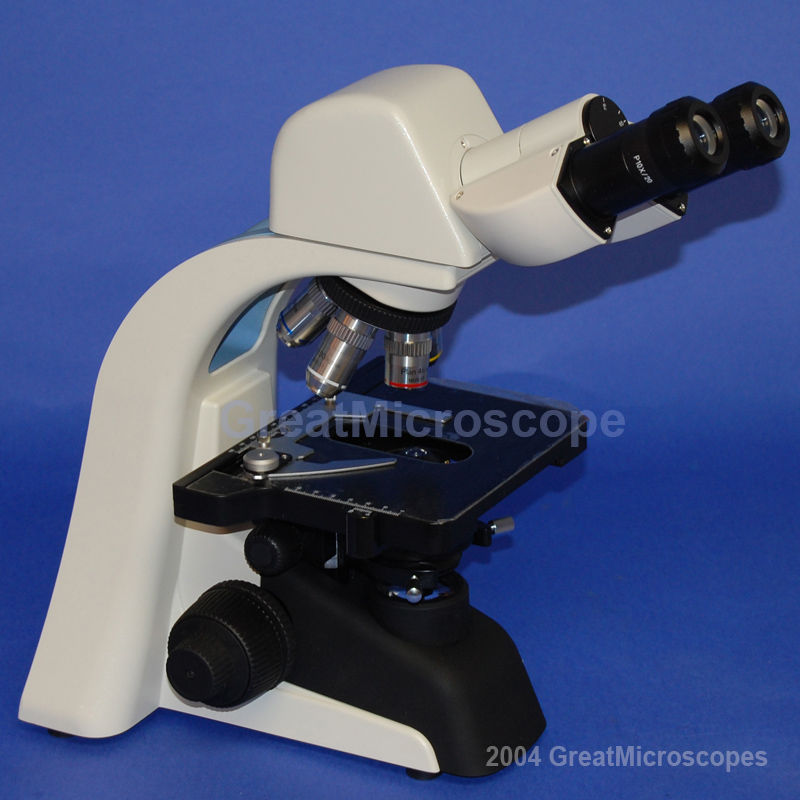

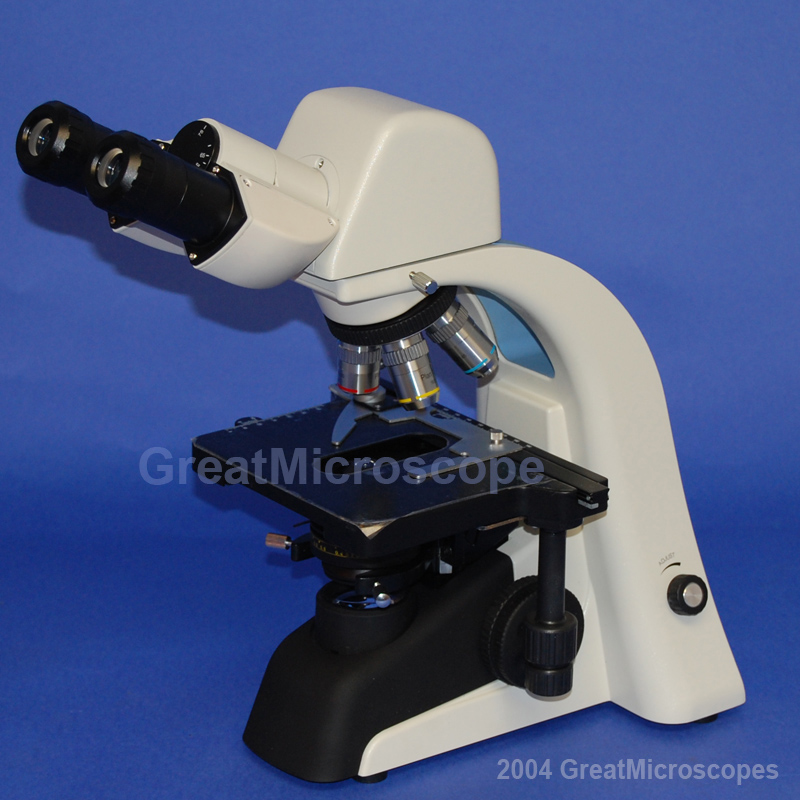

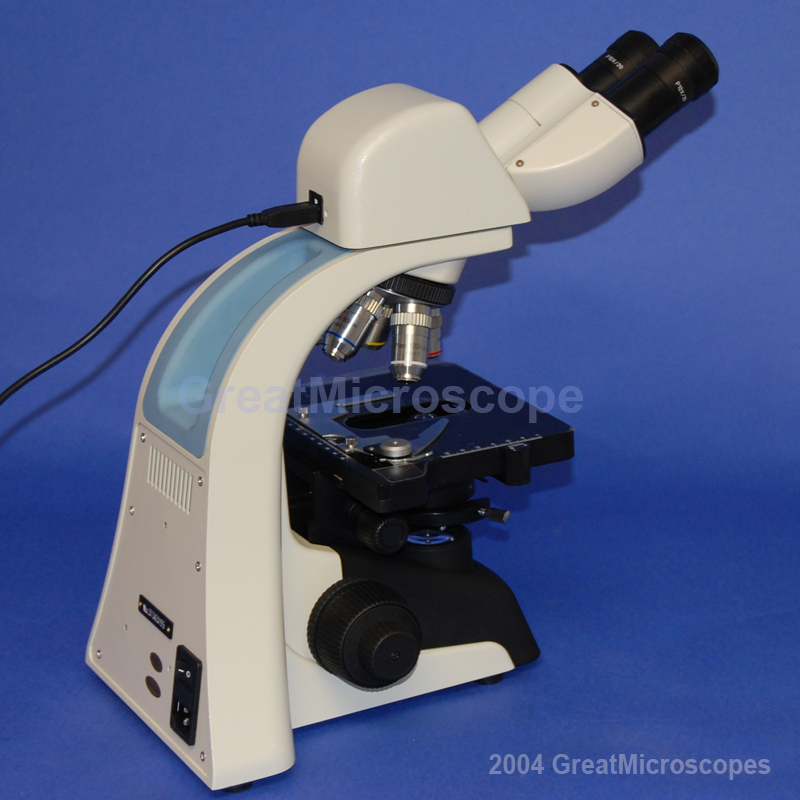

Digital Binocular Compound Microscope 40x – 1600x -Built in 5 Mega Pixel USB camera

Microscope Product Overview:

• Biological Digital Microscope, equipped with high quality optical system, provides excellent optical performance. Because of the streamline figure and pastel color, it has more beautiful appearance. It achieves the notion of ergonomics design, so it can provide the more comfortable operation and operational room. It can be used in the field of the biology, medicine, industry, agriculture, also as ideal tools in hospital, teaching and academy field.
• Plan Achromatic Optical System

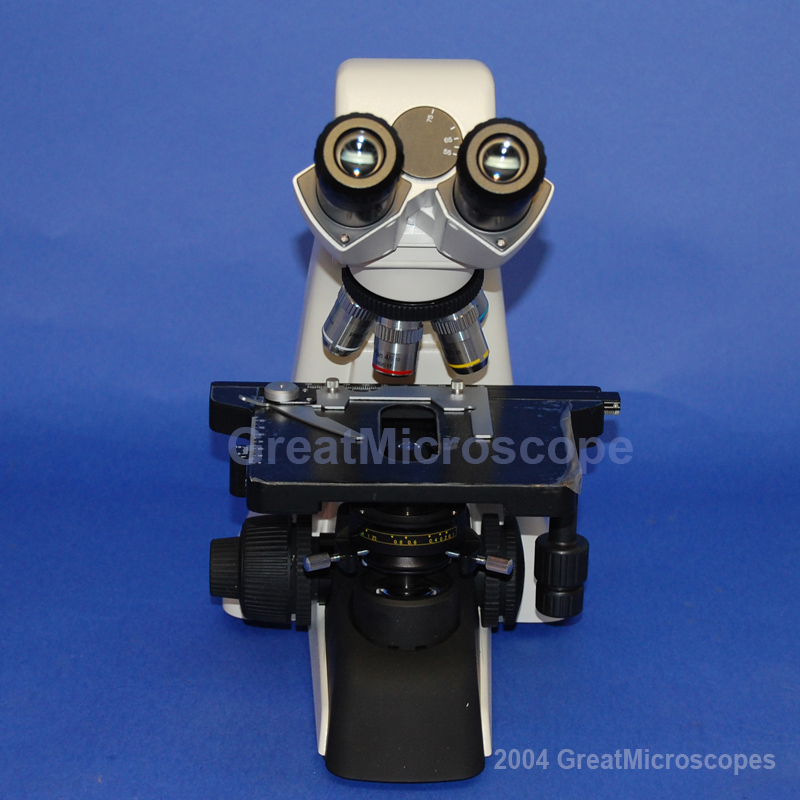

• Digital Binocular Head gene-style, Inclined 30 degree
• Interpapillary distance:55-75mm CMOS Camera.
• Both Eyepiece Tube Diopter Adjustable
• Wide Field Eyepiece WF10X/F.N.30mm Par- Pocal Distance:10mm
• High Contrast Chromatic-free Plan Achromatic Objectives
• Large Size Double Layer Mechanical Stage 120mmx115 mm , 50mmx35mm Graphite Surface, Moving
• Range75mmx55mmMicroscopes Product Features:


  Total Magnification	40x-1000X (Standard assemble)40x-16000X (Selective assemble)
  Head	Digital viewing head, gnel-syle binocular head Inclined 30 degree.Interpapillary distance: 55-75mm 5 Mega Pixel Camera Integrated
  Eyepiece	Wide field eyepiece : F10x/18mm – diopter adjustable
  	Wide field eyepiece : F16x/15mm – diopter adjustable

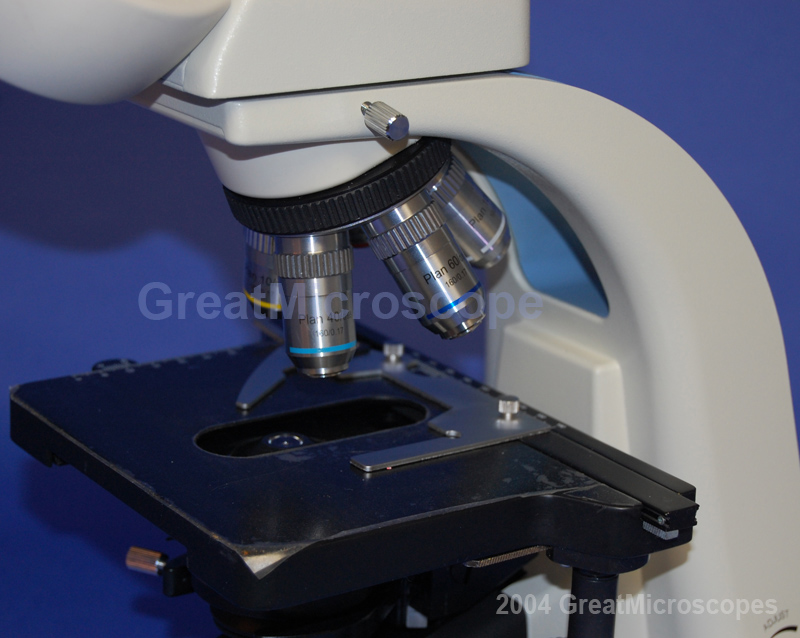

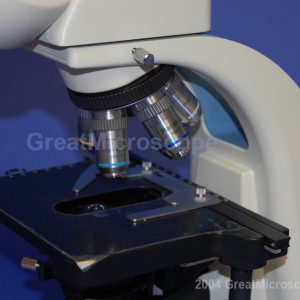

  Objective	Plan Achromatic  Anti-molds-free 4X,10X,40X,100
  Condenser	Abbe Condenser NA1.25 Iris Diaphragm

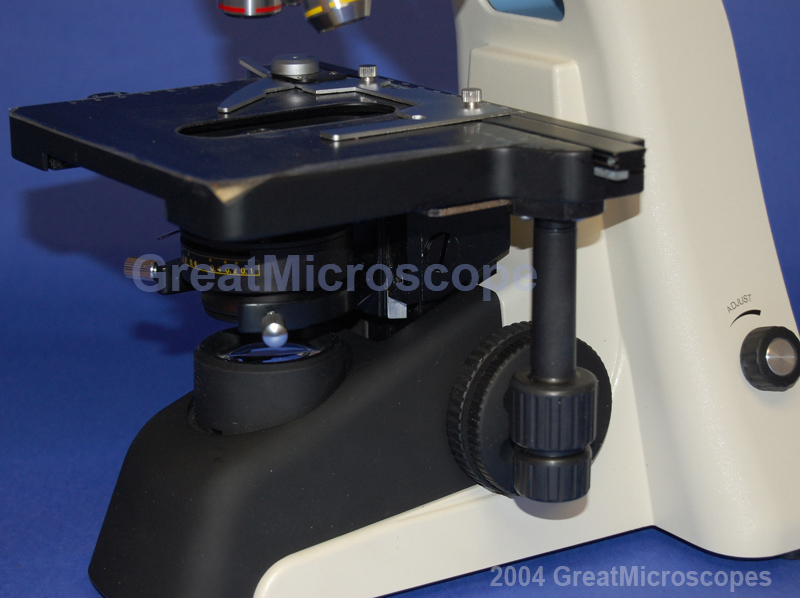

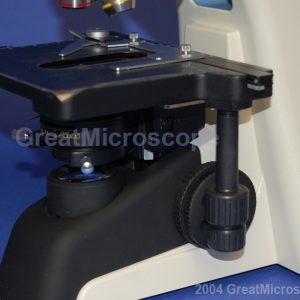

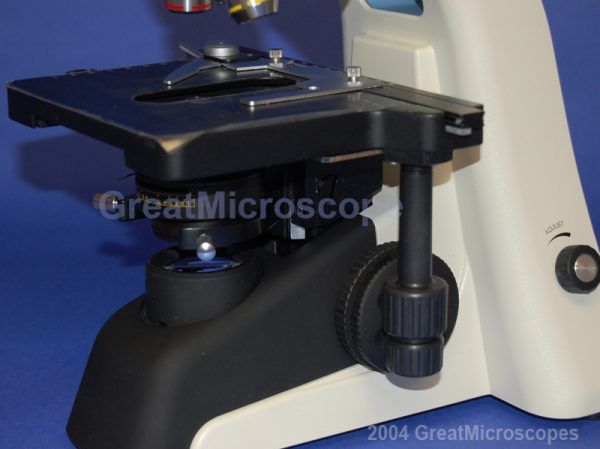

  Stand Focusing System	Coaxial Coarse and Fine AdjustmentSystem: 22mm, Minimal sliding stage Graduation: 0.004mm
  Condenser	Abbe type, N.A=1.25 With Iris Diaphragm and hand wheel stand
  Lamp House	LED 1W, brightness adjustable
  Working Stage	Large Size Double Layer Mechanical Stage 140x132mm , Moving Rang 50mmx30mmx

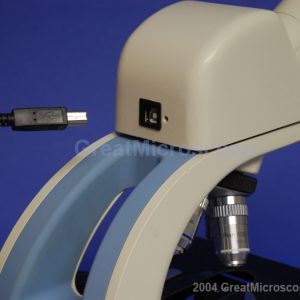

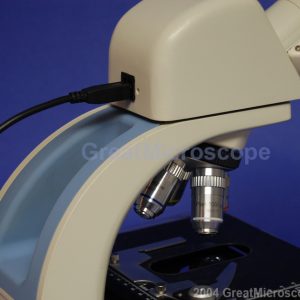

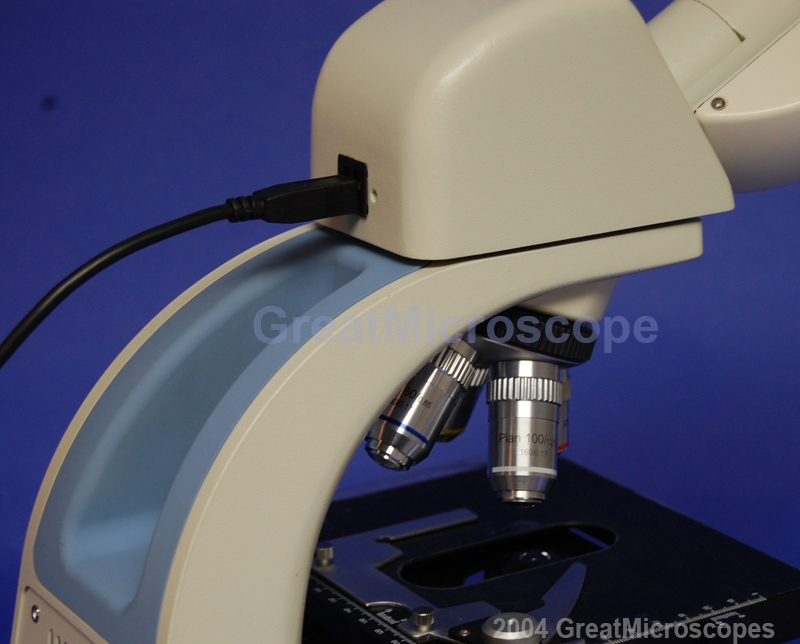

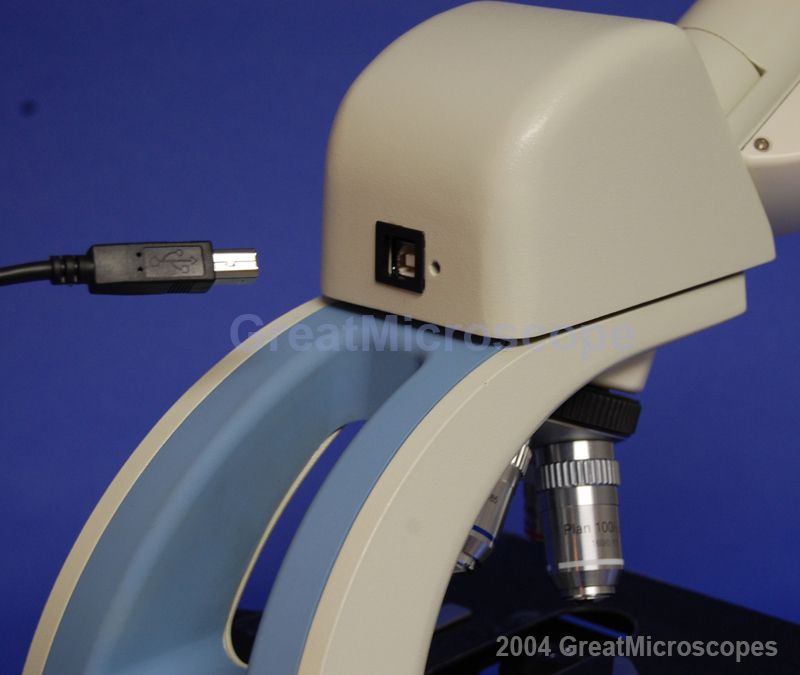

  Camera CMOS	5 Mega Pixels, USB Port.Micro Image Processing and Analyzing Software

  Included Items

  * Aluminum Carrying Case

  * Dividing Ruler : 0.01mm.

  * 1 sample plant prepared slides

  * Includes: Instruction Manual, Dust Cover

  Additional Information

  * Manufactured under ISO: 9001 Standards.

  * Protective Molded Styrofoam Container.

  * Precision Ground Glass Lens.

  * Quality Construction, Metal Frame.

  * 220 VAC

  * 100% Brand New!

  1 Year Manufacturer’s Warranty

  The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered. If your system needs repair, simply let us know and we will see that it is back in service ASAP.
