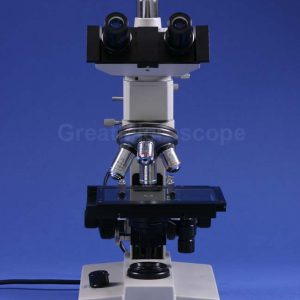

40x – 1008x MAGNIFICATION METALLURGICAL – METALLOGRAPHIC TRINOCULAR UPRIGHT MICROSCOPE EPI-ILLUMINATION – BRIGHTFIELD – DARKFIELD + 3MPIXEL USB DIGITAL CAMERA CAPTURE JPG IMAGES AND VIDEO

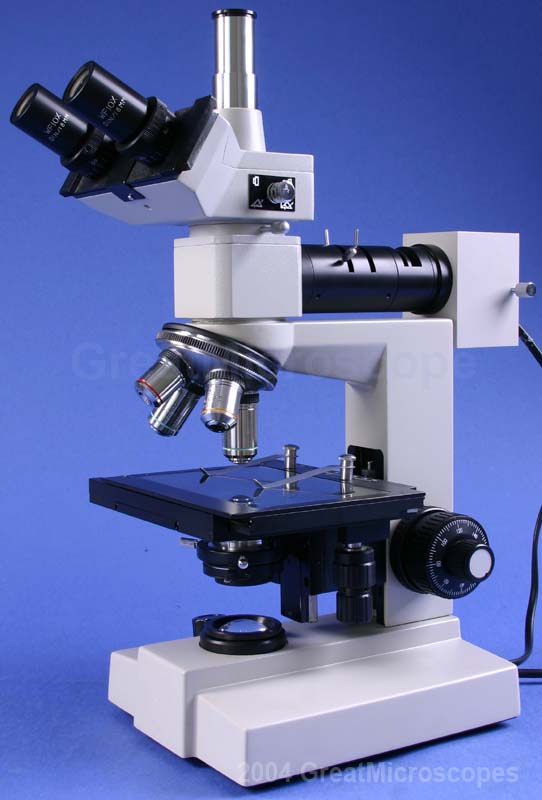

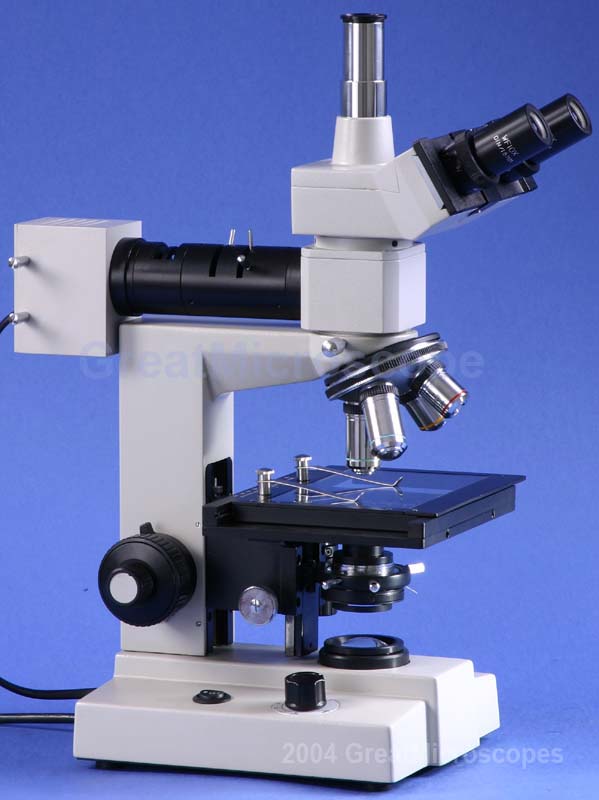

Product Overview

• Excellent Quality Upright Trinocular Professional Metallurgical – Metallographic Microscope!
• Multi-Use Design Provides for Three Major Illumination Techniques: Epi-Illumination (reflected light) for Metallurgical Applications, Brightfield Transmitted Illumination (for transparent or biological specimens), and Darkfield Illumination Microscopy!
• Ideal for Identification and Analysis of the Structure of Different Metals and Alloys.
• Upright Design (Objectives Above the Stage).
• Great for Detailed Inspection of a Metallic Surface.
• Research Grade Performance with Highly Advanced Features and Optics!
• Perfect for Metallurgical Laboratories, Foundries, Silicon Wafer Inspection, Industrial Applications, and Quality Control Labs!
• Great Economical Price! Priced Thousands Lower than Competition!
• Great for Viewing Opaque Surfaces – Light Travels Through the Objective and Reflects off Surface of Object and Back Into Objective!
• No Worries about how to get Light to the Specimen’s Surface!

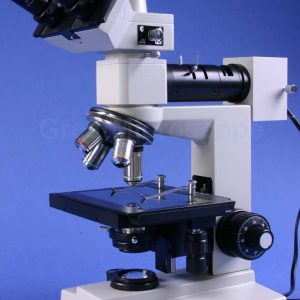

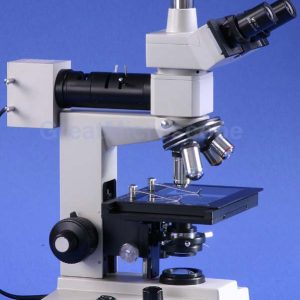

• Epi-Illumination Microscopy System: Light From Rear Housing goes through the Horizontal Shaft, Reflects Down through Objective to the Specimen, Reflects off the Specimen, and Back into the Objective and then to the Eyepieces.

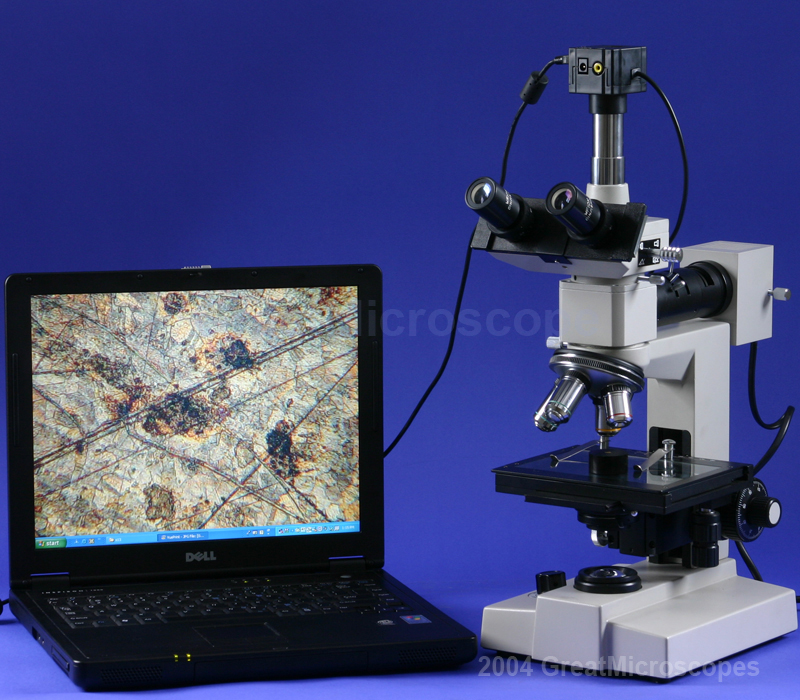

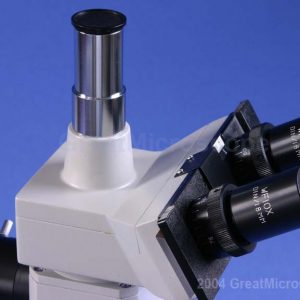

Trinocular Photography Port

• Photograph Your Own Specimens!
• Have Your Own Complete Digital Video Microscopy System!
• Capture Images With Your Computer!
• Display Images on a High Resolution CCTV Monitor or Television!
• Videotape What You See Under the Microscope!
• Versatility – Included Trinocular Port Greatly Expands the Usefulness adding Photographic/Video Capability!
• Other (not included) accessories may be required for connecting digital/film cameras, CCD cameras and Video cameras. Call or Email us your specific requirements.

Special Features

• Unlike most other Metallurgical scopes, this has a Transmitted Light Setting.
• This is a great feature that is useful for viewing transparent specimens since light shines through them from the base illumination.
• This scope also has Darkfield Capability, with the inclusion of two darkfield condensers.

Eyepieces and Magnification\

• Eight Magnifications: 40x, 64x, 100x, 160x, 400x, 630x, 640x, and 1008x.
• Two Eyepiece Sets Included: Wide Field 10x / Wide Field 16x.
• Four PLAN DIN Objectives: 4x, 10x, 40x (Spring Loaded), and 63x (Spring).
• These PLAN Objectives are Superior Quality and the Most Expensive. The Achromatic and Semi-Plan as Found on Other Scopes are the Cheaper Quality.

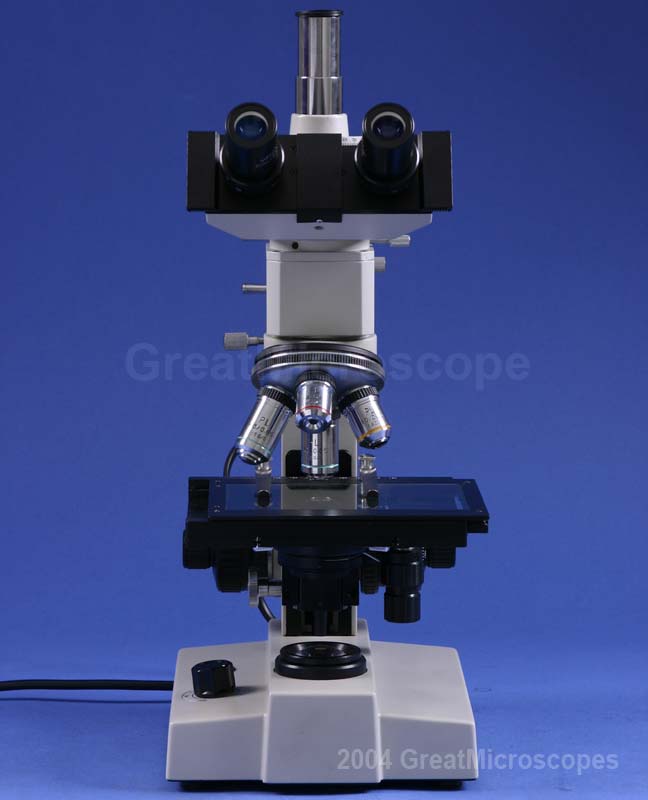

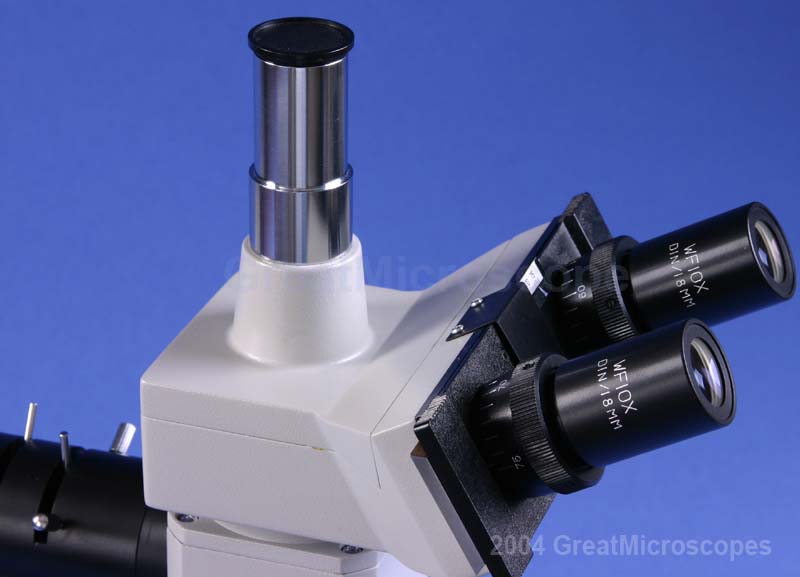

Head – Interpupillary Distance – Diopter

• 45 Degree Inclined Trinocular Head, Rotatable 360 Degrees.
• Adjusts to the Distance Between your Eyes: 55 to 75mm InterPupillary Distance.
• Diopter Adjustment on Both Oculars to Correct for Your Specific Vision Needs.

Condenser – Iris – Filters

• Epi-Illumination Microscopy System: Includes its Own Filter Holders, Aperature/Field Diaphragms and Diaphragm Alignment Screws.
• Brightfield Transmitted Illumination Microscopy System: 1.25 N.A. Abbe Substage Condenser, Iris Diaphragm and Swing-Out Filter Holder.
• Darkfield Microscopy System: Both Darkfield Dry and Darkfield Oil Substage Condensers Included.
• Substage Condenser Movement Knob with Rack and Pinion Steel Gears and Condenser Alignment Screws.
• Filters Included for Epi-Illumination Light: Yellow, Blue, Green.
• Filters Included for Transmitted Light: Yellow, Blue, Frosted.

Illumination

• Halogen Variable Intensity Epi-Illumination Light in External Rear Housing.
• Halogen Variable Intensity Transmitted Light in Base.
• Selector Switch to Choose Light Source.

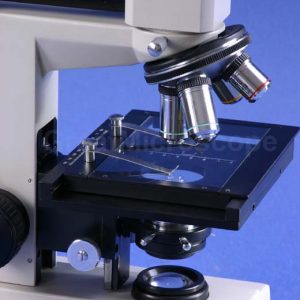

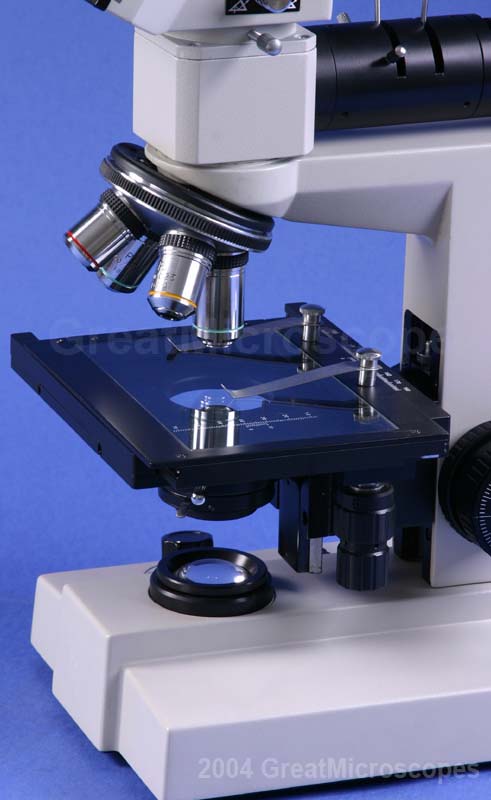

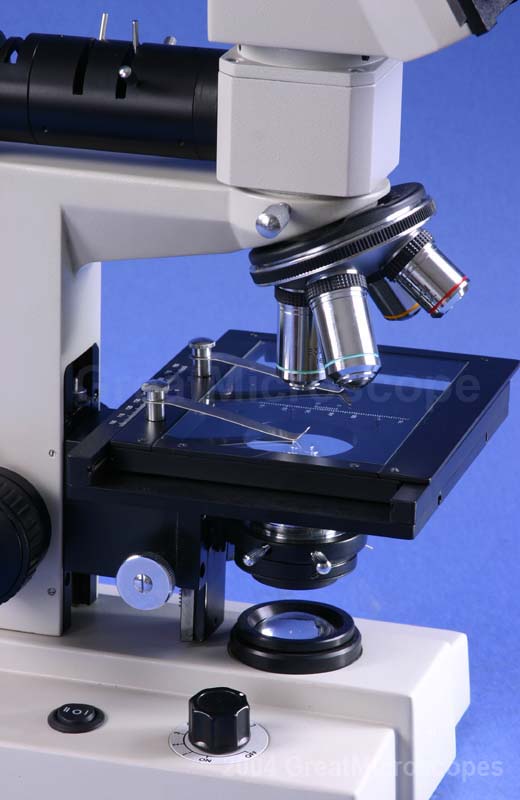

Stage Specifications

• Large Graduated Mechanical Movable Stage: Size 136mm x 160mm.
• Low Position Coaxial X-Y Slide/Stage Movement Knobs – Range of Movement: 74mm (X-Direction – Slide Movement) x 53mm (Y-Direction – Stage Movement).
• Millimeter Graduations for Measurement of X-Y Stage Movement.
• Glass Stage Plate! Great for using Transmitted Light Source.

Focusing

• Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
• Coarse Adjustment Travel Range: 37mm.
• Maximum Distance From Bottom of Longest Objective to Top of Stage: 33mm.
• Adjustable Lock Ring Stop to Limit Coarse Range to Protect Objectives and Specimens.
• Tension Adjustable Coarse Focusing.

Frame – Base – Size – Weight

• Total Overall Height of Microscope: 455mm.
• Instrument Weight: 17 lbs.

Included Items

• Includes: Instruction Manual, Dust Cover, Extra 20W Bulb and Fuse.
• Includes Three Metal Slides for Holding Specimens.

Options

• Optional Measuring Capability: Call Us Today to Discuss Your Measuring Needs and How This Microscope Will Work for You!

Additional Information

• Manufactured under ISO: 9001 Standards.
• Protective Molded Styrofoam Container.
• Precision Ground Glass Lens.
• Quality Construction, Metal Frame.
• 220 Volts
• 100% Brand New!

1 Year Manufacturer’s Warranty

• The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
• If your system needs repair, simply let us know and we will see that it is back in service ASAP.
