100x-1000x TRINOCULAR INVERTED METALLURGICAL – METALLOGRAPHIC MICROSCOPE + MEASURING KIT + 3MPIXEL USB DIGITAL CAMERA CAPTURE JPG IMAGES AND VIDEO

Product Overview
• High Quality Trinocular Professional Inverted Metallurgical – Metallographic Microscope!
• Perfect for Detailed Examination and Micro-Analysis of a Metallic Surface!

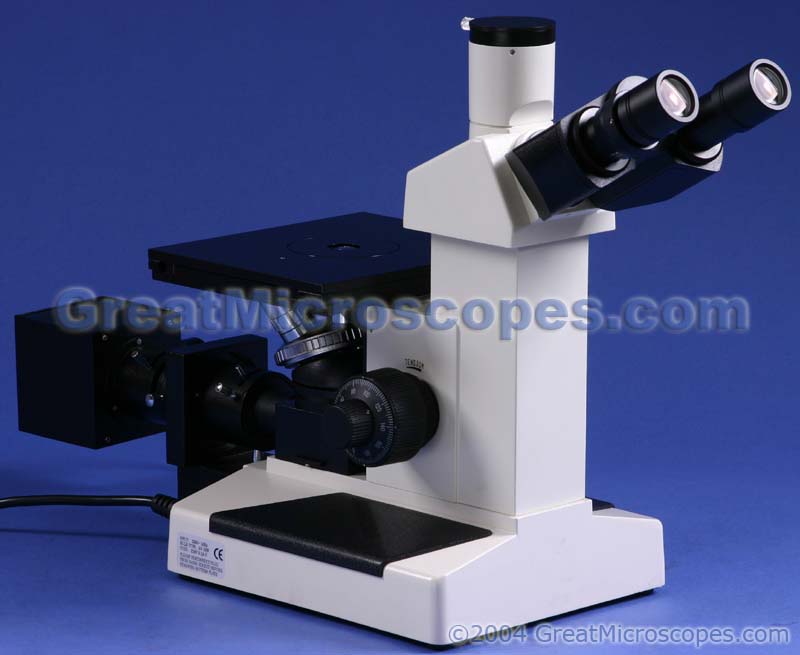

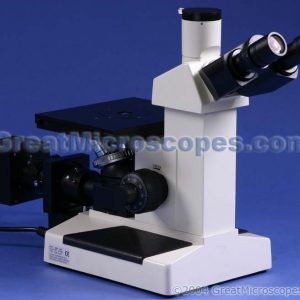

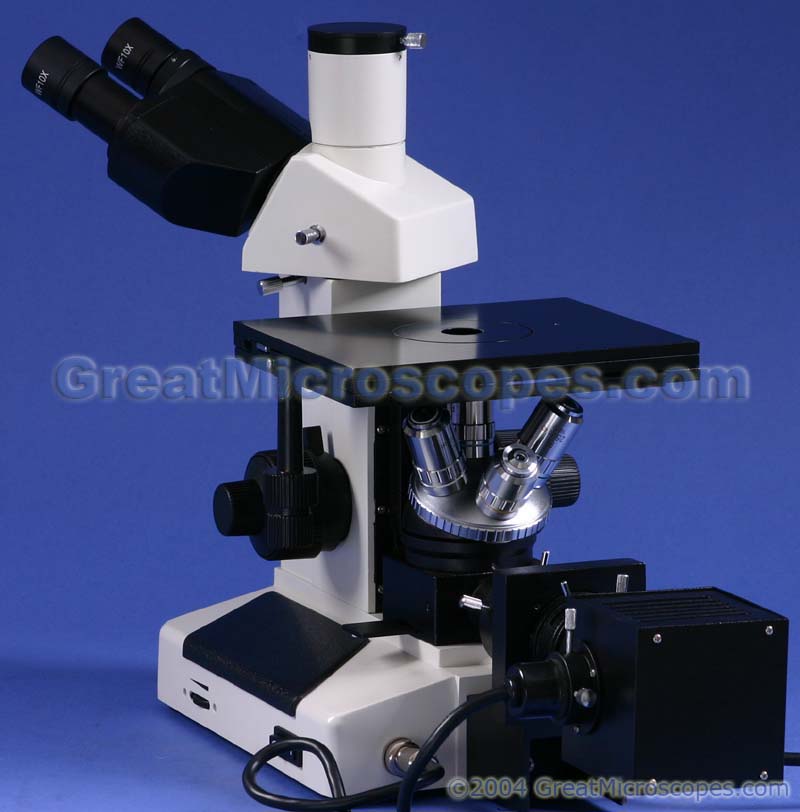

• Inverted Design (Objectives Below the Stage).
• Obtain Highly Magnified Images of Surface Structure.
• Professional Grade Unit with Advanced Capability!

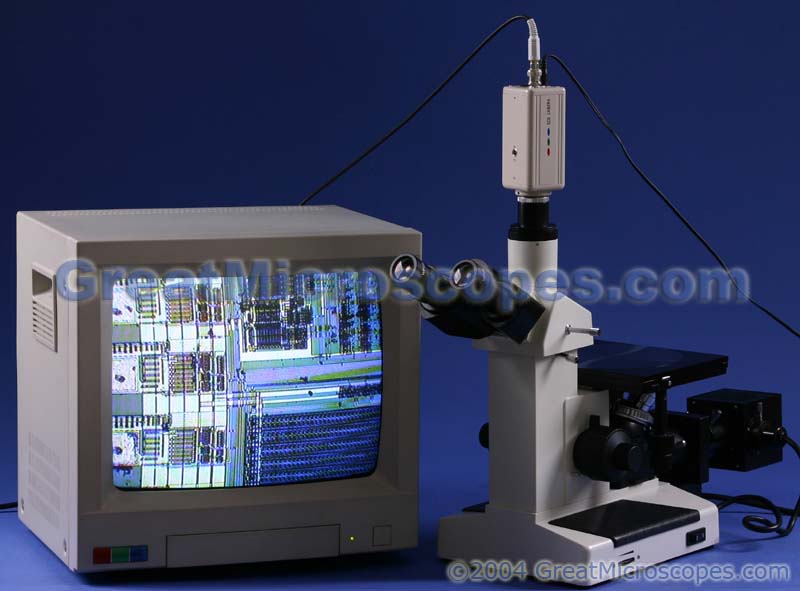

• Excellent for a Variety of Industrial and Research Applications including Metallurgical Labs, Silicon Wafer Inspection, Industrial Inspection – Quality Control, and Foundries!
• Compare to Similar Units costing Thousands More with name brands!
• Great Quality Imaging at a Super Low Price!
• Advanced Epi-Illumination Design provides Maximum Lighting for Optimal Image Clarity.
• Light Travels Through the Objective, Reflects off Object’s Surface, and goes Back Into Objective!
• Polarizing System: Includes capability for plane polarization for enhanced imaging of surface features.

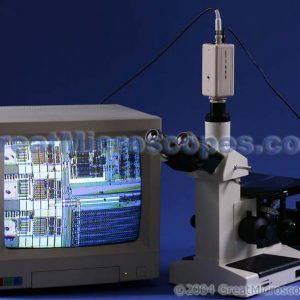

Video and Photography

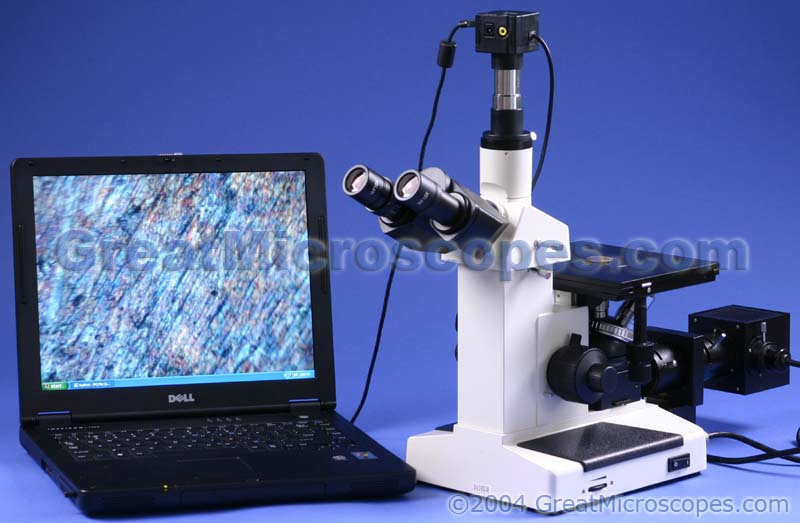

• High Resolution 3.1 MegaPixel Digital Camera System.
• Complete Digital Microscopy Solution Included.
• Capture high resolution digital microscope images, 2048×1536 pixels.

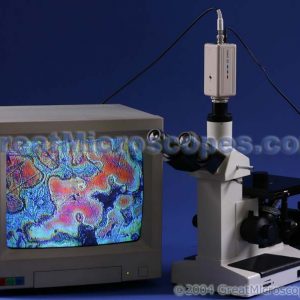

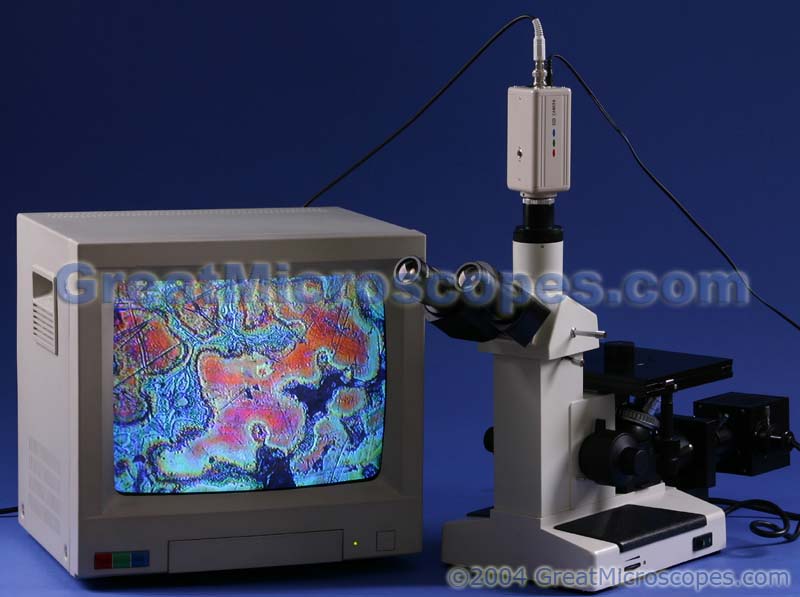

• View and record full motion live video microscope images. Frame size options for video mode: 2048X1536 (up to 11 FPS, depending on PC), 1024 X 768, 640 X 480, 512 X 384.
• Computer connected digital microscope camera connects via USB2.0. Includes USB cable and MS Windows software.
• Color DSP built into camera provides sharp quality color images. Image sensor size is half inch.
• Includes measuring capability with the software.

FREE Bonus
• FREE Microscope Measuring Kit Included: $350 Value!
• Includes: Stage Micrometer with 1mm in 100 divisions, 0.01mm resolution for precise calibration of measuring reticle.
• Includes: Extra WF10x Eyepiece with Built-In Measuring Reticle, X-Scale, 10mm in 100 divisions, 0.1mm Resolution.
• Call Us Today to Discuss Your Measuring Needs and How This Microscope Will Work for You!
• BONUS: Includes a carrying case with Precut Foam for safe transportation of your precision instrument.

Eyepieces and Magnification
• Four Magnifications: 100x, 250x, 400x, and 1000x.
• Eyepiece Set Included: Wide Field 10x (F.N. 18mm).

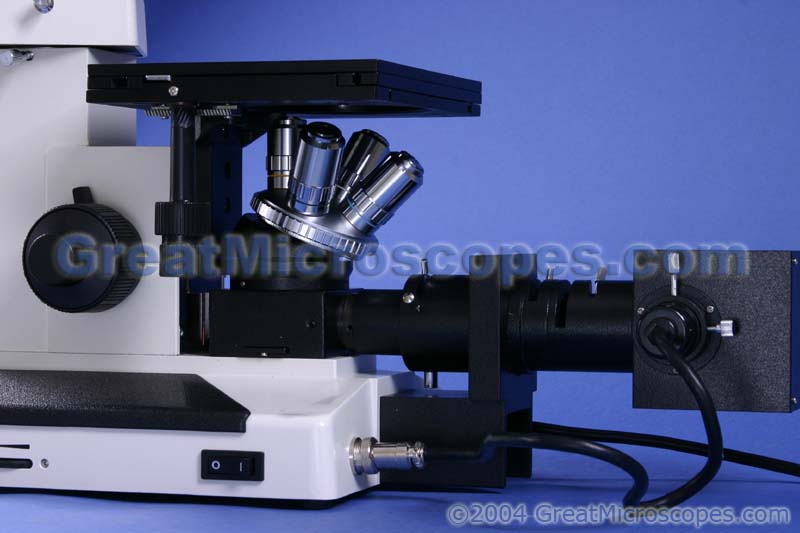

• Four PLAN DIN Objectives: 10x (8.9mm W.D.), 25x (0.76mm W.D.), 40x (0.67mm W.D.), and 100x (Oil Immersion, 0.44mm W.D.).
• These PLAN Objectives are Superior Quality and the Most Expensive. The Achromatic and Semi-Plan as Found on Other Scopes are the Cheaper Quality.
• Spring Loaded 40x and 100x Objectives to Protect Objectives and Specimens.

Illumination
• Variable Intensity 20W Halogen Epi-Illumination in External Rear Housing.
• Light Aperature Diaphragm Adjustment.
• Lamp Centering Knobs for Precision Alignment of Light Source for Optimal Images.

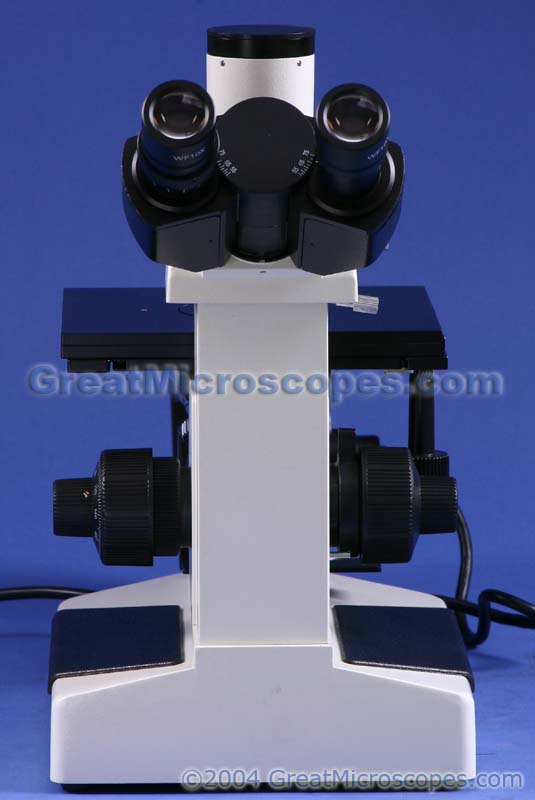

Head – Interpupillary Distance – Diopter

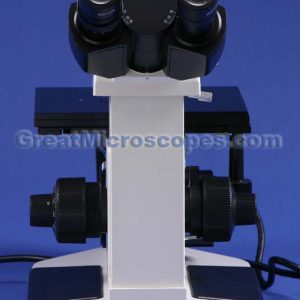

• 45 Degree Inclined Trinocular Head, Rotatable 360 Degrees.
• Adjusts to the Distance Between your Eyes: 55 to 75mm InterPupillary Distance.
• Diopter Adjustment to Correct for Your Specific Vision Needs.

Condenser – Iris – Filters
• Drop-In Filter Holder.
• Three Filters Included: Yellow, Blue, Green.
• Iris Diaphragm Adjustment for Better Light Control.
• Condenser Alignment Knobs.

Stage Specifications
• Large Mechanical X-Y-Z Movable Stage: Size 180mm x 150mm.
• Large Unobstructed Open Stage is Perfect for Oversized Specimens that would not Fit on an Upright Model.
• Low Position Coaxial X-Y Stage Movement Knobs – Range of Movement: 15mm (X-Direction) x 17mm (Y-Direction).
• Detachable Stage Slide Clip.

Focusing
• Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
• Coarse Adjustment Travel Range: 20mm (Stage Movement Distance Up/Down).
• Fine Adjustment Division: 0.002mm.
• Adjustable Lock Ring Stop to Limit Coarse Range to Protect Objectives and Specimens.
• Tension Adjustable Coarse Focusing.

Frame – Base – Size – Weight
• Total Overall Height of Microscope: 345mm.
• Instrument Weight: 19 lbs.

Included Items
• Includes: Instruction Manual, Extra Bulb and Fuse.
• Includes bottle of immersion oil for use only on the 100x oil immersion lens.

Other Specifications
• Manufactured under ISO: 9001 Standards.
• 220 VAC Power Requirement.
• High Quality Solid Construction!
• Precision Made Glass Optics!
• Brand New, Never Used!

Manufacturer’s Warranty
• Warranty is 1 years on all microscope equipment.
• The microscope warranty covers problems arising from normal usage.
• We will repair or replace your defective microscopy equipment as needed during the warranty period.

Optional Accessories
• Optional 100x Dry Objective. This objective does not use immersion oil.
