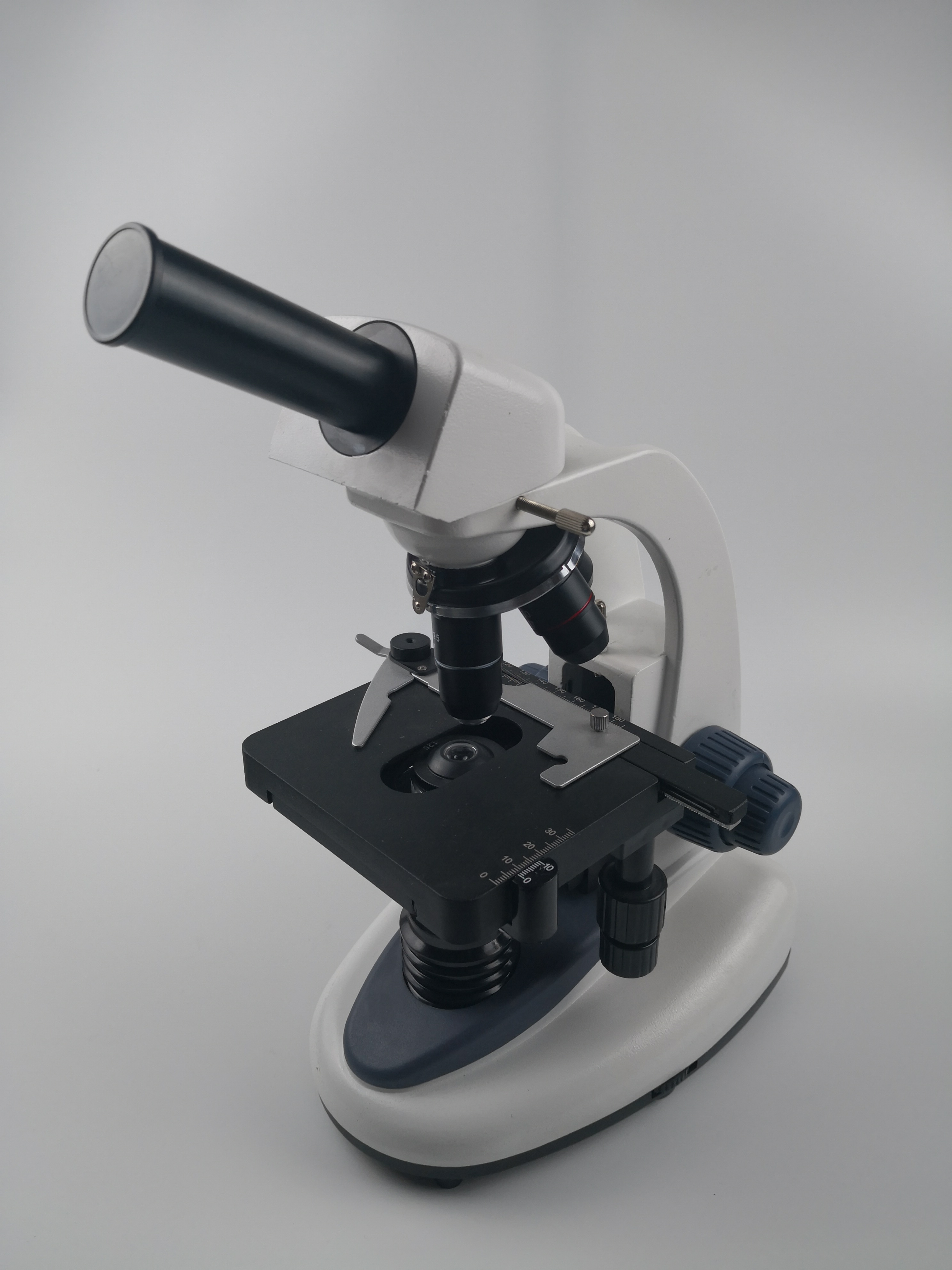

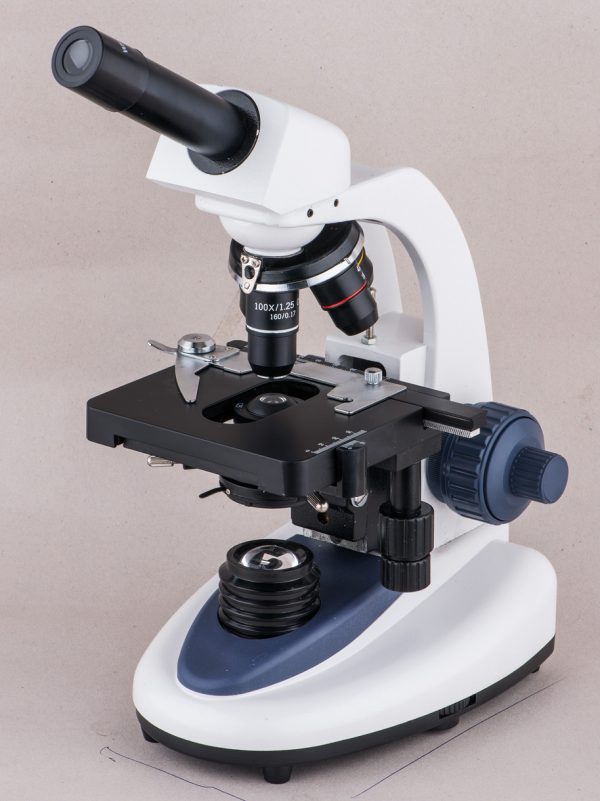

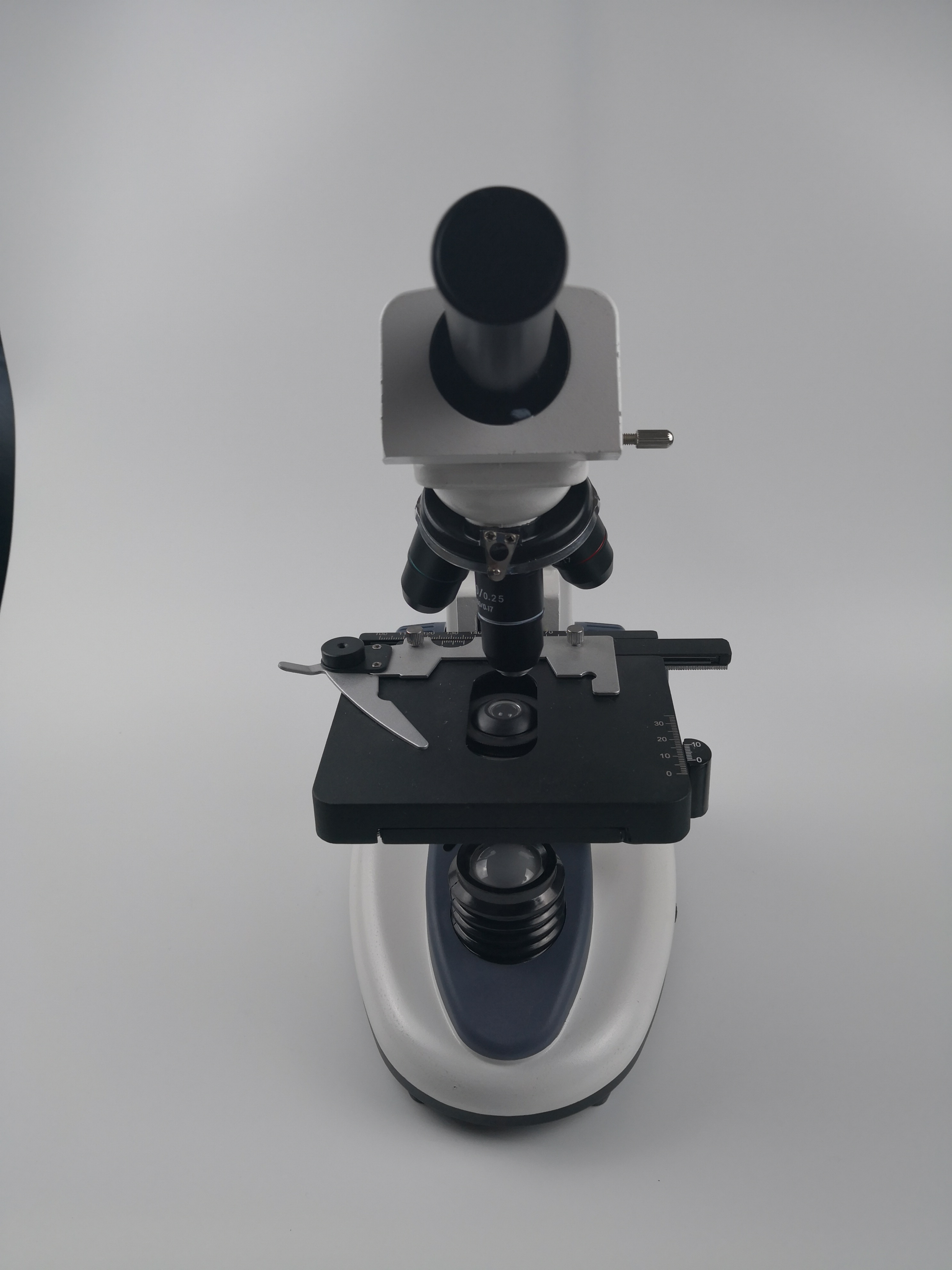

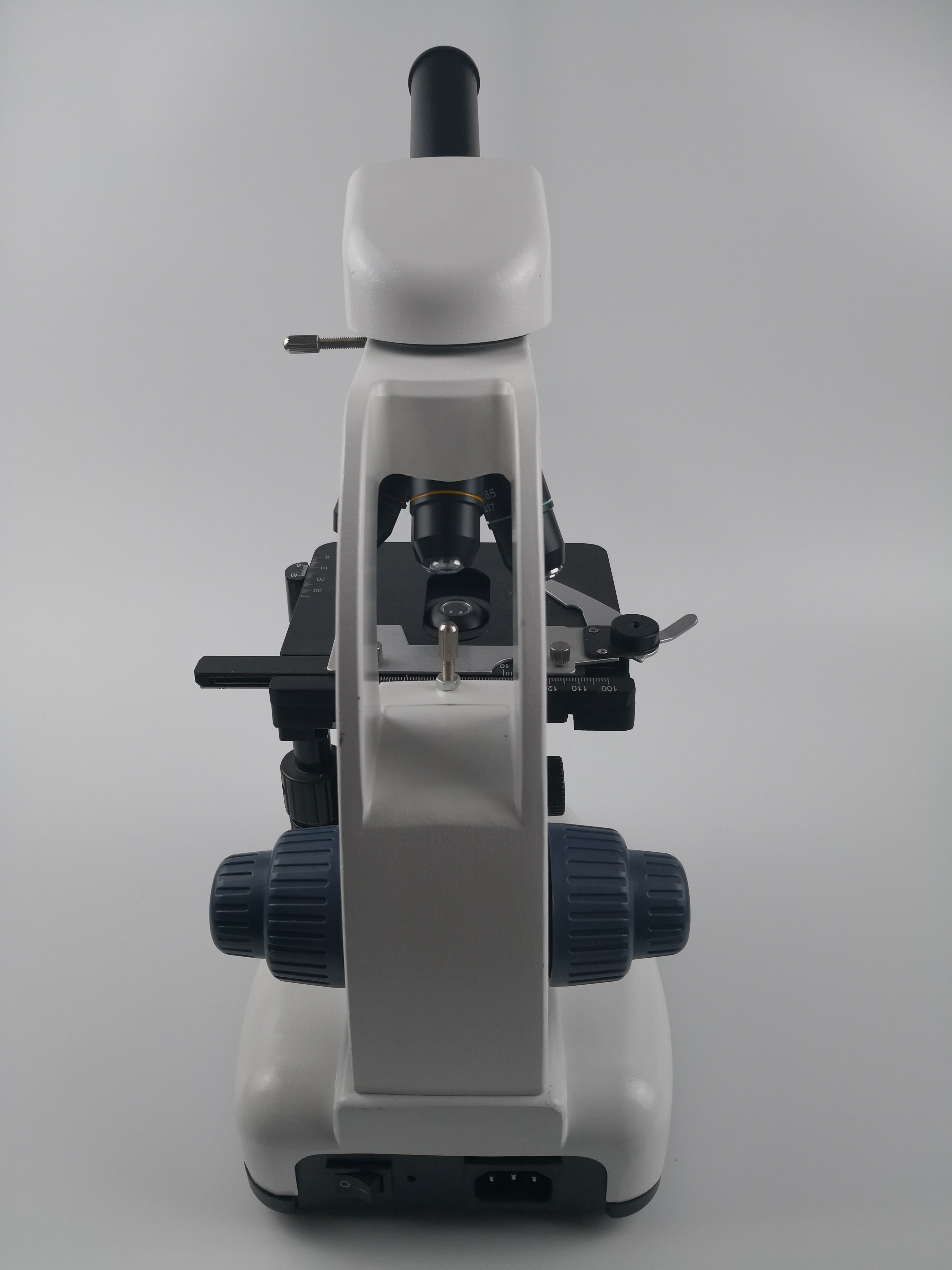

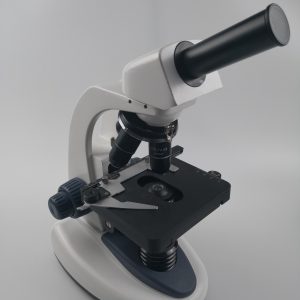

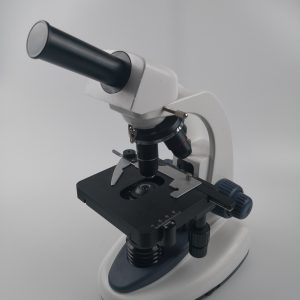

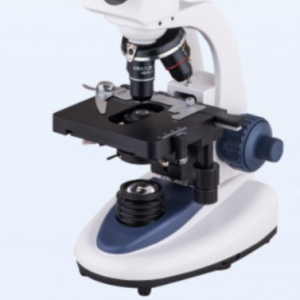

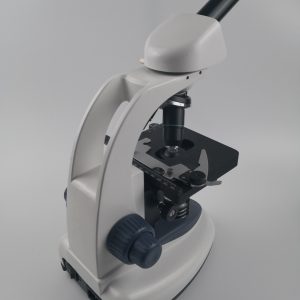

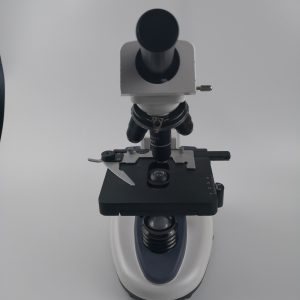

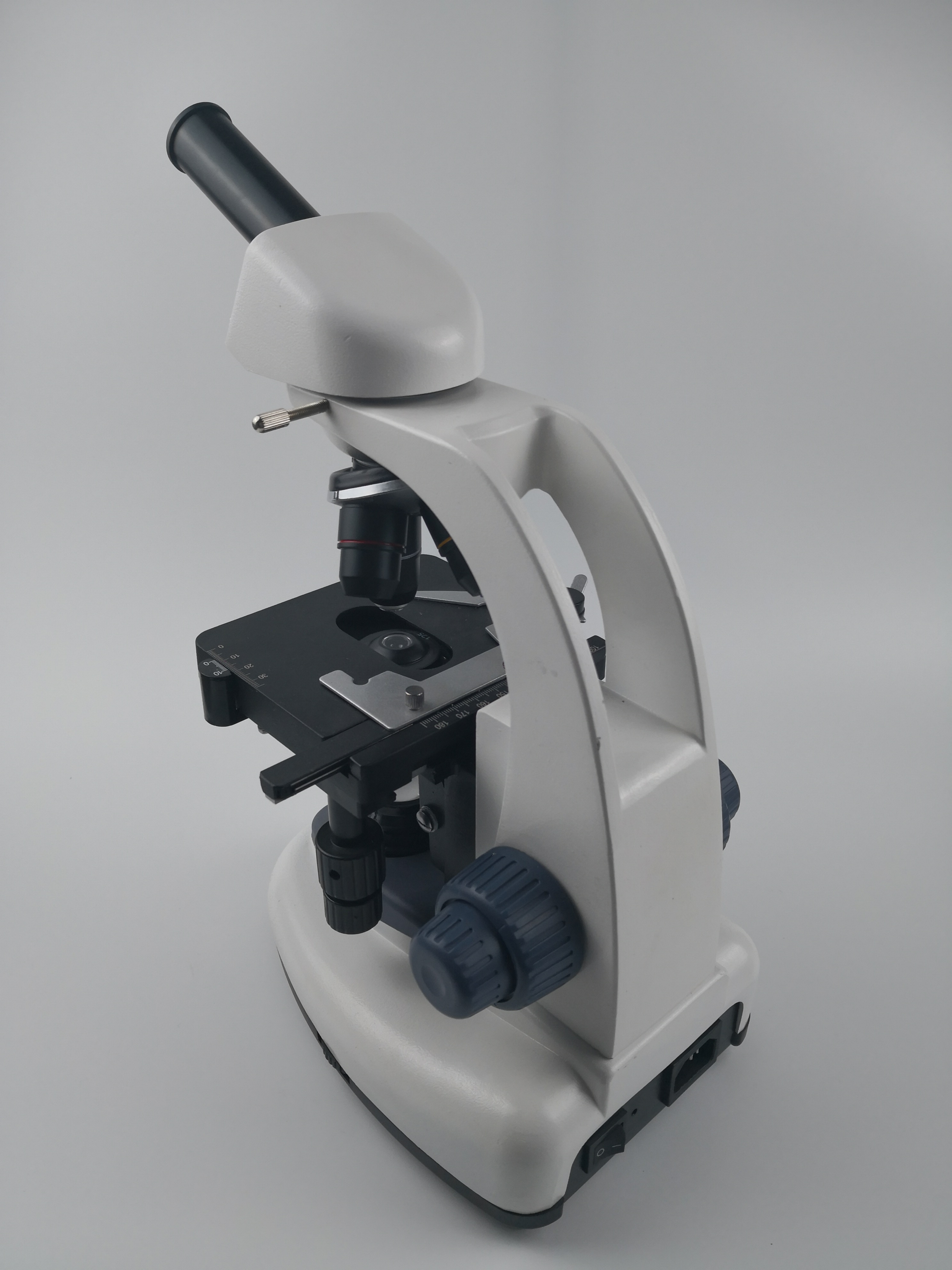

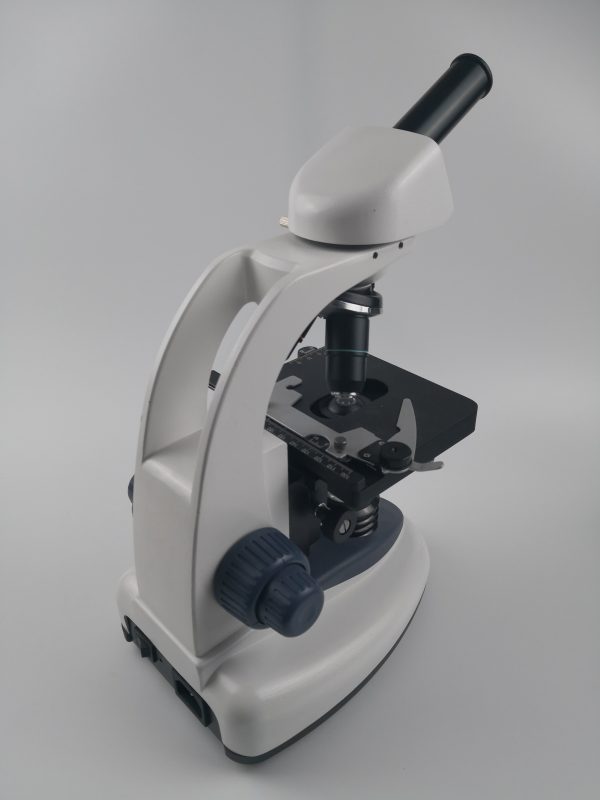

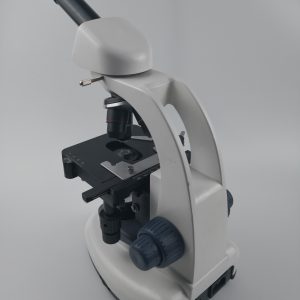

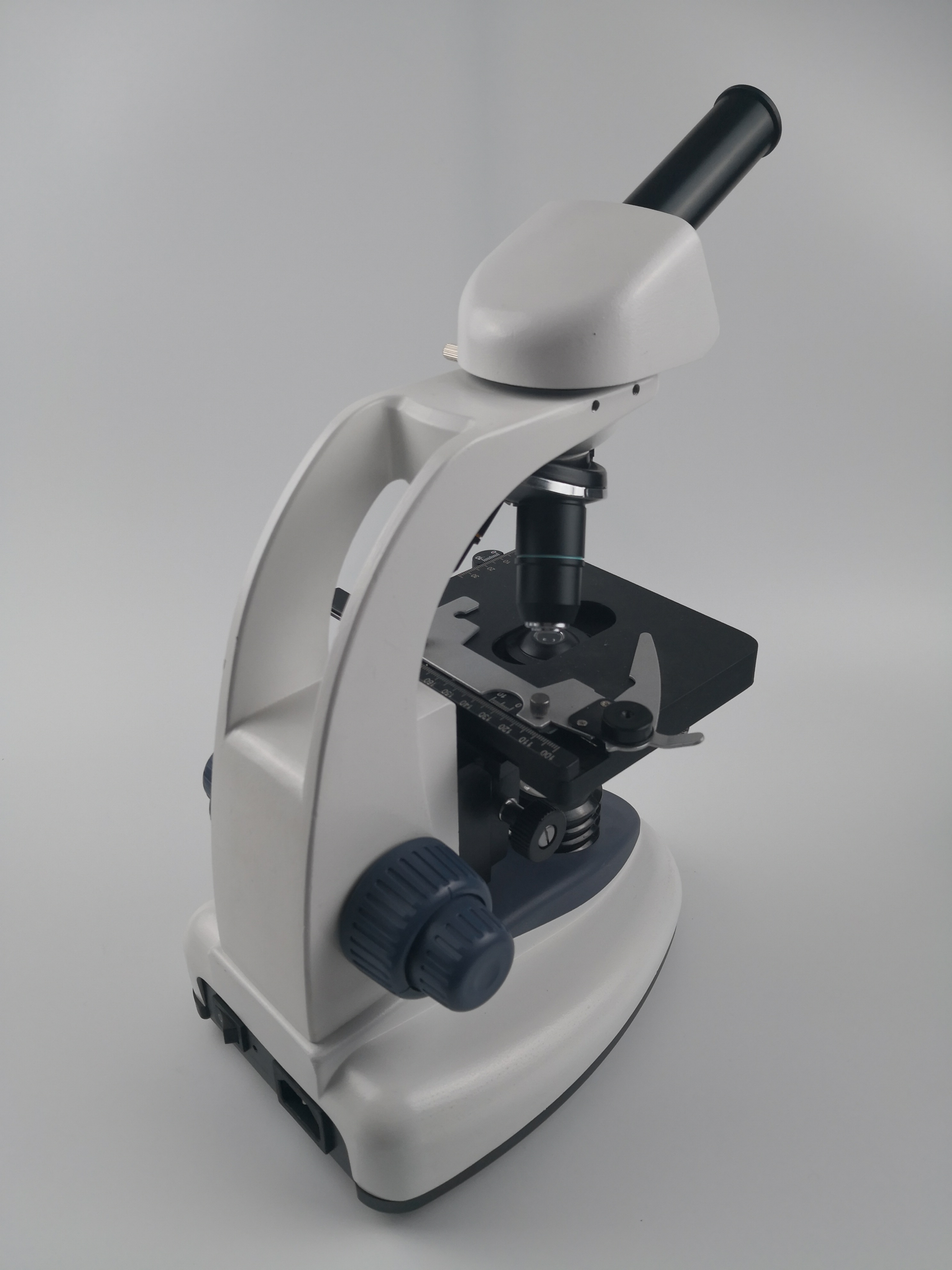

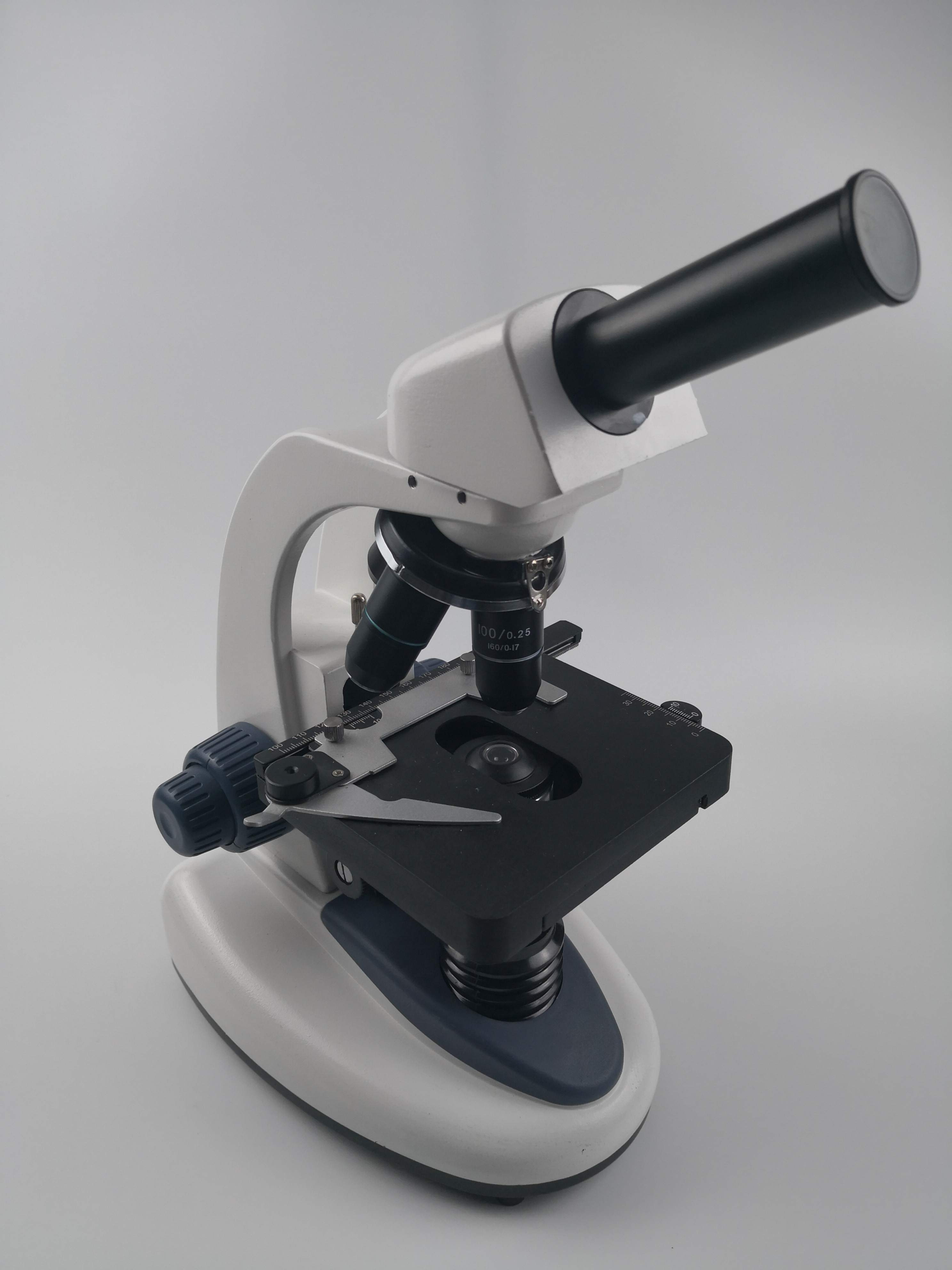

40X – 1600X MONOCULAR HIGH POWER COMPOUND MICROSCOPE

Call For Price

Product Overview

Superior Features – Biological Compound Monocular Microscope.
Great for educational use!
High Power Magnification of Biological Specimens on Slides.
Incredible low price. Compare to identical units three times this amount in science catalogs.

SKU: HMXSP-300D Category: Student Biological

Description

Microscope Specification

Eyepiece Details – Magnification

Eight Choices of Microscopic Magnification: 40x, 64x, 100x, 160x, 400x, 640x, 1000x, and 1600x.
Microscope kit includes two eyepiece sets to vary magnification: Wide Field 10x and 16x.
DIN standard microscope objectives: 4x, 10x, 40x, 100x (oil immersion lens).
The 40x and 100x microscope objectives have a spring to protect the glass specimen slide as well as the lens.

Microscope Illumination

Transmitted illumination with light source in base of microscope.
Microscope bulb is LED for bright intensity.
Intensity has variable reaostat for precise control of amount of light reaching specimen.

Microscope Head Details

45 Degree Inclined Monocular Head.

Condenser – Iris – Filters

1.25 N.A. Abbe Substage Condenser, Condenser Movement Knob, Iris Diaphragm and Swing-Out Filter Holder.
Condenser Alignment Screws.
Rack and Pinion Steel Gears for Easy and Better Condenser Movement.

Stage Specifications

Large Graduated Mechanical Movable (up/down and longitudinal Y-direction) Stage: 120 x 125mm.
The Stage Movement in the Longitudinal Y-Direction is a Great Option Found Only on More Expensive Models!
Low Position Coaxial X-Y Slide/Stage Movement Knobs – Range of Movement: 80mm (X-Direction – Slide Movement) x 52mm (Y-Direction – Stage Movement).

Focusing

Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
Coarse Adjustment Travel Range: 30mm (Stage Movement Distance Up/Down).
Fine Adjustment Division: 0.002mm.
Adjustable Lock Ring Stop to Limit Coarse Range to Protect Slides.
Tension Adjustable Coarse Focusing.

Other Details

Microscope manufacturing factory certified ISO: 9001 compliant.
All optical lens are precision ground glass for premium optics and durability.
Frame of microscope is sturdy and made of metal.
Voltage 220V.
All microscopy items are always 100% Brand New! We do not sell used microscopes or used parts.

Manufacturer\’s Warranty

1 YEAR Manufacturer’s Warranty on Microscope and accessories.
The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
If your system needs repair, simply let us know and we will see that it is back in service ASAP.
