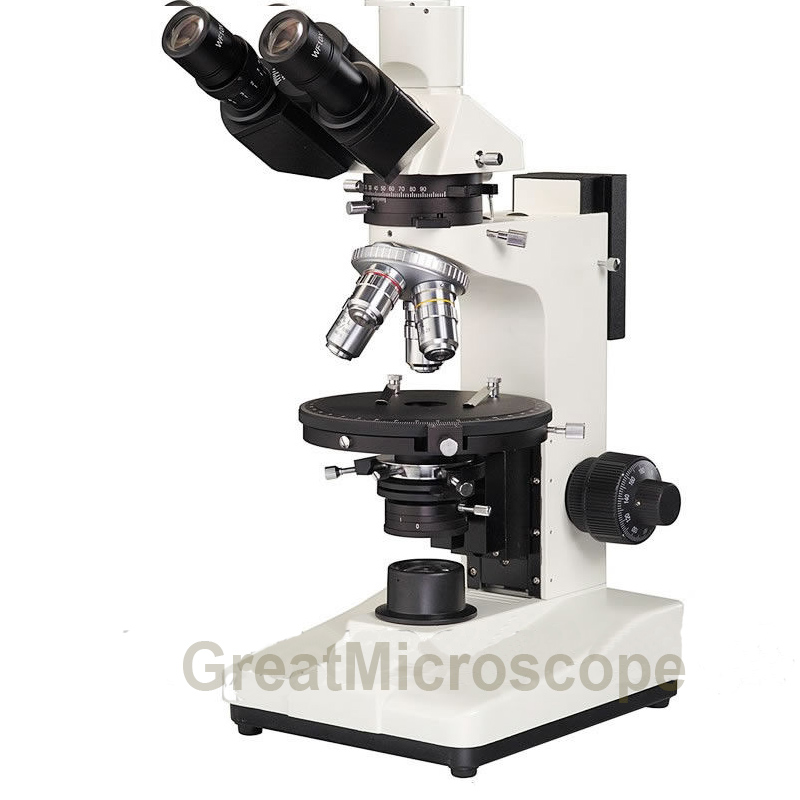

Transmitted and Reflected illumination Polarizing Microscope w/ 3MP USB Camera
Call For Price
Microscope Product Overview:
Model: hm0091000a – transmitted and reflected polarization microscopes are utilized polarize light to observe and research the matter which have double refraction features, the user can make single polarizing observation, orthoscopic observation, conescopic observation.
They are applied in geology, chemicals, physic and leechdom fields. They are also widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. They are the ideal instruments for scientific research and universities teaching demo.
Product Description
· Transmitted, Reflected, transmitted/reflected illumination can be chosen
· Equipped with strain-free plan objectives (center adjustable) and wide field eyepiece
· Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
· Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6′ center adjustable and with tighten Stage vertical effective movement up to 30mm
· Wide voltage range power supply (85-265V 47-60HZ), 6V20W halogen lamp, brightness adjustable
| Specification | |||
| Eyepiece | Wide field WF10x/18mm | ||
| Division eyepiece 10x/18mm 0.10mm/div | |||
| Objective, Center Adjustable | Strain-free plan achromatic objective (cover glass:0.17mm) PL 4X/0.10 |
Strain-free plan achromatic objective (no cover glass) PL 5X/0.12 |
|
| Strain-free plan achromatic objective (cover glass:0.17mm) PL 10X/0.25 |
Strain-free plan achromatic objective (no cover glass) PL L 10X/0.25 |
||
| Strain-free plan achromatic objective (cover glass:0.17mm) PL 40X/0.65 (spring) |
Strain-free plan achromatic objective (no cover glass) PL L40X/0.60 (spring) |
||
| Strain-free plan achromatic objective (cover glass:0.17mm) PL 60X/0.85 (spring) |
Strain-free plan achromatic objective (no cover glass) PL L 60X/0.75 (spring) |
||
| Reflected Illumination | Rotatable Polarizer | ||
| 6V 20w, halogen lamp, adjustable brightness | |||
| Transmitted Illumination | Polarizer 360° rotatable, have 0,90,180,270 four scale | ||
| Collector for halogen lamp illumination | |||
| Illumination 6V 20w, halogen lamp, adjustable brightness | |||
| Abbe condenser N.A. 1.25, rack & pinion adjustable | |||
| Eyepiece Tube | Trinocular head, inclination of 30°,can send 100% of the image light to top photography port | ||
| Polarizing Attachment | Built-in analyzer, can switch to normal observe or polarizing observe freely, 90° rotatable with scale, minimum retardation resolution 12′ | ||
| Bertrand lens, impellent style, center adjustable | |||
| λ compensator | |||
| λ/4 compensator | |||
| Quarts wedge compensator | |||
| Nosepiece | Quadruple (Frontward ball bearing inner locating) | ||
| Focus System | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 0.002mm | ||
| Stage | Rotatable stage, Diameter Φ150mm, 360° graduated (in 1degree increments), minimum retardation resolution 6′ center adjustable and with tightened | ||
Additional Information
* Manufactured under ISO: 9001 Standards.
* Protective Molded Styrofoam Container.
* Precision Ground Glass Lens.
* Quality Construction, Metal Frame.
* 220 VAC
* 100% Brand New!
| 1 Year Manufacturer’s Warranty |
|
