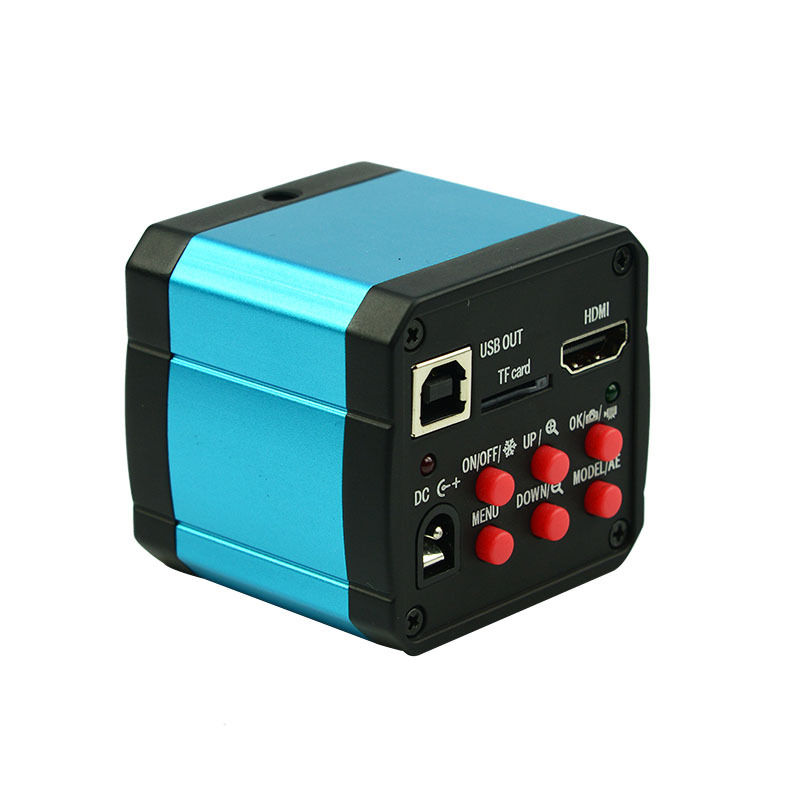

14MP Panasonic sensor 1/2.3 inch HDMI 1080P HD USB Digital Industry Video Inspection Microscope Camera Set TF Card Video Recorder HY-2307 Digital Microscope Camera Live Video + Still Image Capture! Usb Computer Connectivity

Features:

• Camera with HDMI USB2.0 two output
• Image format: jpg
• Image resolution: 4320*3240 (for TF card) 1920*1080 @ 30FPS(for TF card)
• Video format: MOV(for TF card)
• Video recorder: 1920*1080 @ 30FPS (for TF Card)

USB Video resolution: 1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,4 horizontal line , 4 vertical line,any positions

Specification:

Image sensor:14 megapixel Panasonic sensor 1/2.3 inch Effective pixel:14 megapixel
Pixel size:1.43×1.43um
Frame rate:30fps

Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
Video format: MP4, AVI
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 4 pcs of transverse lines/vertical lines, moveable Different color,4 horizontal line , 4 vertical line,any positions SNR:Support
TF card interface:Max 32G
HDMI interface:Standard HDMI output (Type A)
Lens:C
USB interface:Standard usb2.0 interface (Type B)

It build in digital crosshairs and color control, add line in the pictures, freeze

Supply USB2.0,HDMI HD video,Two output ports
We sell much to the industry factory, they can see the problems directly in the Monitor via the camera.

NOTE:
TF card storage is only for HDMI output. USB output will be storaged in PC.

For USB output, the white balance, exposure and color adjustment are automatic. They can’t be adjusted.
For HDMI output, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.

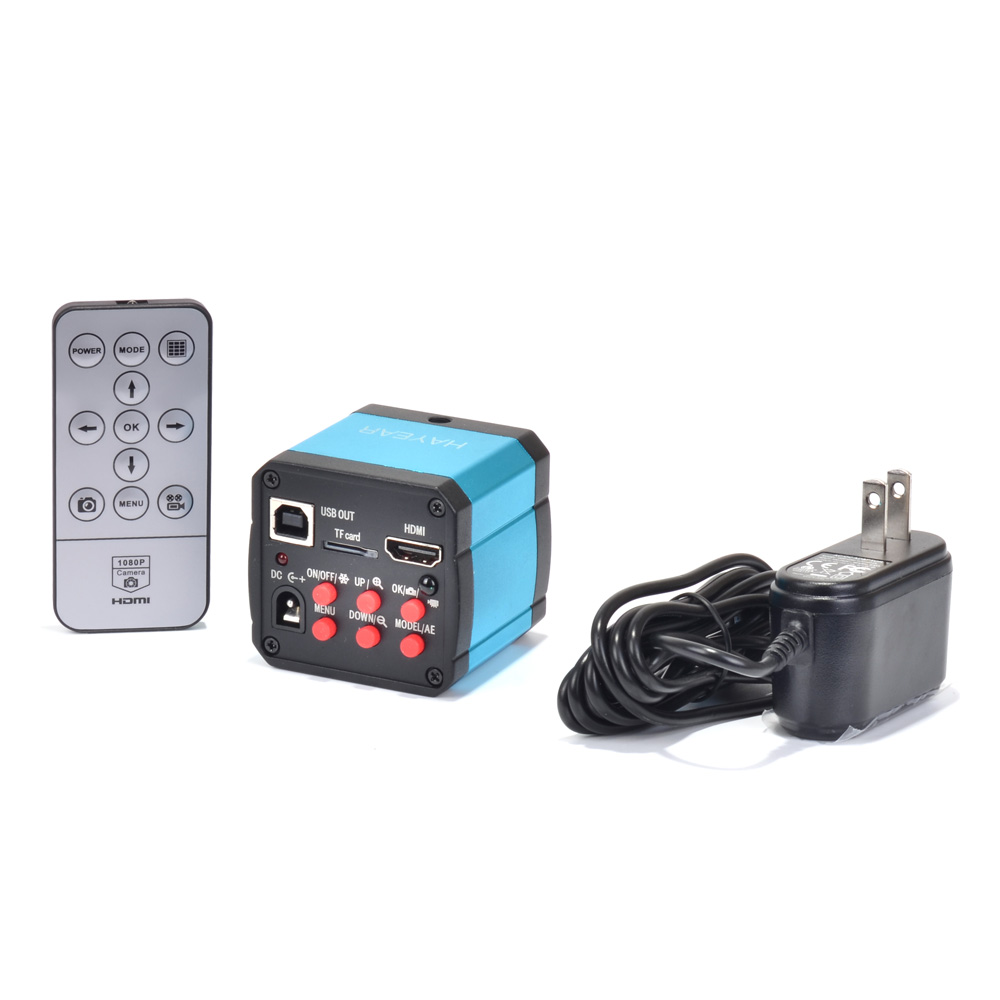

Package incluede:

1 x HDMI Microscope CameraCamera 1 x 12V Power supply
1 x USB line
1 x Software DISC

Additional Information

• Protective Molded Styrofoam Container.
• Precision Ground Glass Lens.
• Quality Construction, Metal Frame.
• 220V
• 100% Brand New!

• 1 Year Manufacturer’s Warranty
• The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
• If your system needs repair, simply let us know and we will see that it is back in service ASAP .
• We ensure availability of supply parts and accessories for the next (10) Ten Years and life time technical support.
• We will repair or replace your defective microscope parts as needed during the warranty period.
